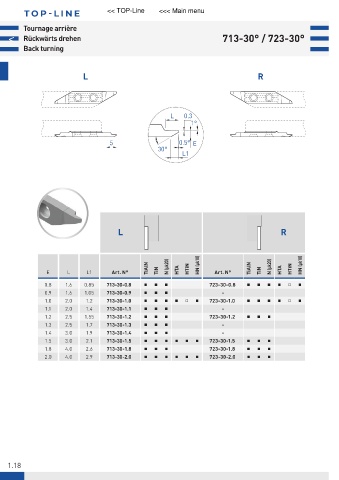

Tournage arrière
< Rückwärts drehen 713-30° / 723-30°
Back turning
L R
L 0.3
1°
5 0.5° E
30°
L1
L R
TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN N (μk20) HTA HTiN HN (μk10)
E L L1 Art. N° TiN Art. N° TiN
0.8 1.6 0.85 713-30-0.8 Ŷ Ŷ Ŷ 723-30-0.8 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
0.9 1.6 1.05 713-30-0.9 Ŷ Ŷ Ŷ -
1.0 2.0 1.2 713-30-1.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 723-30-1.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.1 2.0 1.4 713-30-1.1 Ŷ Ŷ Ŷ -
1.2 2.5 1.55 713-30-1.2 Ŷ Ŷ Ŷ 723-30-1.2 Ŷ Ŷ Ŷ
1.3 2.5 1.7 713-30-1.3 Ŷ Ŷ Ŷ -
1.4 3.0 1.9 713-30-1.4 Ŷ Ŷ Ŷ -
1.5 3.0 2.1 713-30-1.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 723-30-1.5 Ŷ Ŷ Ŷ
1.8 4.0 2.6 713-30-1.8 Ŷ Ŷ Ŷ 723-30-1.8 Ŷ Ŷ Ŷ
2.0 4.0 2.9 713-30-2.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 723-30-2.0 Ŷ Ŷ Ŷ
