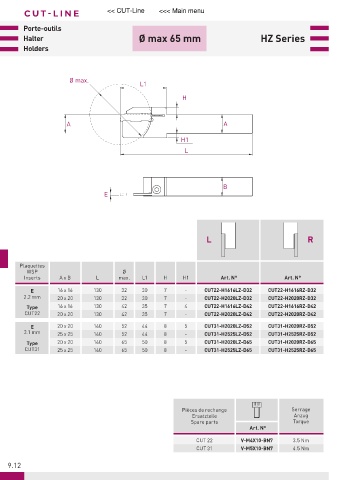

Page 396 - 21-036 APPLITEC catalogue.indb

C U T -LINE << CUT-Line <<< Main menu

Porte-outils
Halter Ø max 65 mm HZ Series
Holders

Ø max.
L1
H

A A

H1
L

B
E

L R

Plaquettes
WSP Ø
Inserts A x B L max. L1 H H1 Art. N° Art. N°

E 16 x 16 130 32 30 7 - CUT22-H1616LZ-D32 CUT22-H1616RZ-D32
2.2 mm 20 x 20 130 32 30 7 - CUT22-H2020LZ-D32 CUT22-H2020RZ-D32
Type 16 x 16 130 42 35 7 4 CUT22-H1616LZ-D42 CUT22-H1616RZ-D42
CUT22 20 x 20 130 42 35 7 - CUT22-H2020LZ-D42 CUT22-H2020RZ-D42
E 20 x 20 140 52 44 8 5 CUT31-H2020LZ-D52 CUT31-H2020RZ-D52
3.1 mm
25 x 25 140 52 44 8 - CUT31-H2525LZ-D52 CUT31-H2525RZ-D52
Type 20 x 20 140 65 50 8 5 CUT31-H2020LZ-D65 CUT31-H2020RZ-D65
CUT31 25 x 25 140 65 50 8 - CUT31-H2525LZ-D65 CUT31-H2525RZ-D65

Pièces de rechange Serrage
Ersatzteile Anzug
Spare parts Torque
Art. N°
CUT 22 V-M4X10-BN7 3.5 Nm
CUT 31 V-M5X10-BN7 4.5 Nm

9.12
