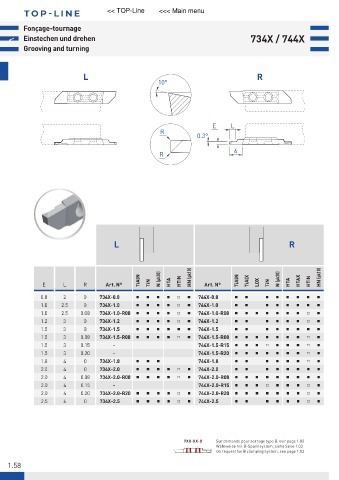

Page 62 - 21-036 APPLITEC catalogue.indb

T OP -LINE << TOP-Line <<< Main menu

Fonçage-tournage
< Einstechen und drehen 734X / 744X
Grooving and turning

L R
10°

E L
R
0.3°

6
R

L R

TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN TiAlX LOX N (μk20) HTA HTAX HTiN HN (μk10)
E L R Art. N° TiN Art. N° TiN
0.8 2 0 734X-0.8 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 744X-0.8 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
1.0 2.5 0 734X-1.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 744X-1.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
1.0 2.5 0.08 734X-1.0-R08 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 744X-1.0-R08 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.2 3 0 734X-1.2 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 744X-1.2 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.5 3 0 734X-1.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 744X-1.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
1.5 3 0.08 734X-1.5-R08 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 744X-1.5-R08 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.5 3 0.15 - 744X-1.5-R15 Ŷ Ŷ Ŷ Ƒ Ŷ Ŷ Ŷ Ƒ Ŷ
1.5 3 0.20 - 744X-1.5-R20 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.8 4 0 734X-1.8 Ŷ Ŷ Ŷ 744X-1.8 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
2.0 4 0 734X-2.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 744X-2.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
2.0 4 0.08 734X-2.0-R08 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 744X-2.0-R08 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
2.0 4 0.15 - 744X-2.0-R15 Ŷ Ŷ Ŷ Ƒ Ŷ Ŷ Ŷ Ƒ Ŷ
2.0 4 0.20 734X-2.0-R20 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 744X-2.0-R20 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
2.5 6 0 734X-2.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 744X-2.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ

7XX-XX-B Sur demande pour serrage type B, voir page 1.03
Wahlweise mit B-Spannsystem, siehe Seite 1.03
On request for B clamping system, see page 1.03
1.58
