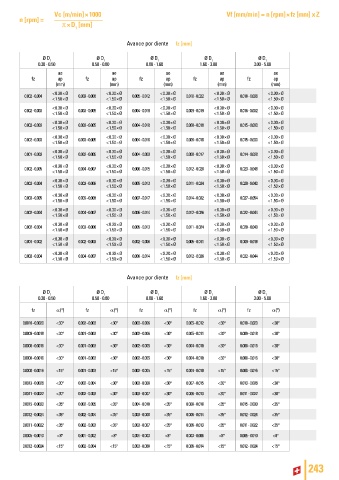

P. 245
Vc [m/min] × 1000 Vf [mm/min] = n [rpm] × fz [mm] x Z
n [rpm] =
π × D [mm]
1
Avance por diente fz [mm]
ø D 1 ø D 1 ø D 1 ø D 1 ø D 1
0.30 - 0.50 0.50 - 0.80 0.80 - 1.60 1.60 - 3.00 3.00 - 5.00
ae ae ae ae ae
fz ap fz ap fz ap fz ap fz ap
(mm) (mm) (mm) (mm) (mm)
< 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø
0.002 - 0.004 0.003 - 0.006 0.005 - 0.012 0.010 - 0.022 0.018 - 0.036
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
< 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø
0.002 - 0.003 0.003 - 0.005 0.004 - 0.010 0.009 - 0.019 0.016 - 0.032
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
< 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø
0.002 - 0.003 0.003 - 0.005 0.004 - 0.010 0.008 - 0.018 0.015 - 0.030
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
< 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø
0.002 - 0.003 0.003 - 0.005 0.004 - 0.010 0.008 - 0.018 0.015 - 0.030
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
< 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø
0.001 - 0.003 0.002 - 0.005 0.004 - 0.009 0.008 - 0.017 0.014 - 0.028
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
< 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø
0.002 - 0.005 0.004 - 0.007 0.006 - 0.015 0.012 - 0.028 0.023 - 0.046
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
< 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø
0.002 - 0.004 0.003 - 0.006 0.005 - 0.013 0.011 - 0.024 0.020 - 0.040
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
< 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø
0.003 - 0.005 0.005 - 0.009 0.007 - 0.017 0.014 - 0.032 0.027 - 0.054
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
0.002 - 0.004 < 0.30 × Ø 0.004 - 0.007 < 0.30 × Ø 0.006 - 0.014 < 0.30 × Ø 0.012 - 0.026 < 0.30 × Ø 0.022 - 0.044 < 0.30 × Ø
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
< 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø
0.002 - 0.004 0.003 - 0.006 0.005 - 0.013 0.011 - 0.024 0.020 - 0.040
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
0.001 - 0.002 < 0.30 × Ø 0.002 - 0.003 < 0.30 × Ø 0.002 - 0.006 < 0.30 × Ø 0.005 - 0.011 < 0.30 × Ø 0.009 - 0.018 < 0.30 × Ø
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
< 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø < 0.30 × Ø
0.002 - 0.004 0.004 - 0.007 0.006 - 0.014 0.012 - 0.026 0.022 - 0.044
< 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø < 1.50 × Ø
Avance por diente fz [mm]
ø D 1 ø D 1 ø D 1 ø D 1 ø D 1
0.30 - 0.50 0.50 - 0.80 0.80 - 1.60 1.60 - 3.00 3.00 - 5.00
fz α (°) fz α (°) fz α (°) fz α (°) fz α (°)
0.0010 - 0.0020 < 30° 0.002 - 0.003 < 30° 0.003 - 0.006 < 30° 0.005 - 0.012 < 30° 0.010 - 0.020 < 30°
0.0009 - 0.0018 < 30° 0.001 - 0.003 < 30° 0.002 - 0.006 < 30° 0.005 - 0.011 < 30° 0.009 - 0.018 < 30°
0.0008 - 0.0016 < 30° 0.001 - 0.003 < 30° 0.002 - 0.005 < 30° 0.004 - 0.010 < 30° 0.008 - 0.016 < 30°
0.0008 - 0.0016 < 30° 0.001 - 0.003 < 30° 0.002 - 0.005 < 30° 0.004 - 0.010 < 30° 0.008 - 0.016 < 30°
0.0008 - 0.0016 < 15° 0.001 - 0.003 < 15° 0.002 - 0.005 < 15° 0.004 - 0.010 < 15° 0.008 - 0.016 < 15°
0.0013 - 0.0026 < 30° 0.002 - 0.004 < 30° 0.003 - 0.008 < 30° 0.007 - 0.015 < 30° 0.013 - 0.026 < 30°
0.0011 - 0.0022 < 30° 0.002 - 0.003 < 30° 0.003 - 0.007 < 30° 0.006 - 0.013 < 30° 0.011 - 0.022 < 30°
0.0015 - 0.0030 < 35° 0.002 - 0.005 < 35° 0.004 - 0.010 < 35° 0.008 - 0.018 < 35° 0.015 - 0.030 < 35°
0.0012 - 0.0024 < 35° 0.002 - 0.004 < 35° 0.003 - 0.008 < 35° 0.006 - 0.014 < 35° 0.012 - 0.024 < 35°
0.0011 - 0.0022 < 35° 0.002 - 0.003 < 35° 0.003 - 0.007 < 35° 0.006 - 0.013 < 35° 0.011 - 0.022 < 35°
0.0005 - 0.0010 < 8° 0.001 - 0.002 < 8° 0.001 - 0.003 < 8° 0.003 - 0.006 < 8° 0.005 - 0.010 < 8°
0.0012 - 0.0024 < 15° 0.002 - 0.004 < 15° 0.003 - 0.008 < 15° 0.006 - 0.014 < 15° 0.012 - 0.024 < 15°
243
