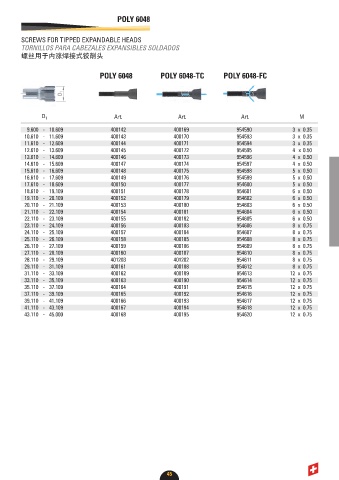

POLY 6048

SCREWS FOR TIPPED EXPANDABLE HEADS
TORNILLOS PARA CABEZALES EXPANSIBLES SOLDADOS
螺丝用于内涨焊接式铰削头

POLY 6048 POLY 6048-TC POLY 6048-FC

D 1 Art. Art. Art. M

9.600 - 10.609 400142 400169 954590 3 x 0.35
10.610 - 11.609 400143 400170 954593 3 x 0.35
11.610 - 12.609 400144 400171 954594 3 x 0.35
12.610 - 13.609 400145 400172 954595 4 x 0.50
13.610 - 14.609 400146 400173 954596 4 x 0.50
14.610 - 15.609 400147 400174 954597 4 x 0.50
15.610 - 16.609 400148 400175 954598 5 x 0.50
16.610 - 17.609 400149 400176 954599 5 x 0.50
17.610 - 18.609 400150 400177 954600 5 x 0.50
18.610 - 19.109 400151 400178 954601 6 x 0.50
19.110 - 20.109 400152 400179 954602 6 x 0.50
20.110 - 21.109 400153 400180 954603 6 x 0.50
21.110 - 22.109 400154 400181 954604 6 x 0.50
22.110 - 23.109 400155 400182 954605 6 x 0.50
23.110 - 24.109 400156 400183 954606 8 x 0.75
24.110 - 25.109 400157 400184 954607 8 x 0.75
25.110 - 26.109 400158 400185 954608 8 x 0.75
26.110 - 27.109 400159 400186 954609 8 x 0.75
27.110 - 28.109 400160 400187 954610 8 x 0.75
28.110 - 29.109 401203 401202 954611 8 x 0.75
29.110 - 31.109 400161 400188 954612 8 x 0.75
31.110 - 33.109 400162 400189 954613 12 x 0.75
33.110 - 35.109 400163 400190 954614 12 x 0.75
35.110 - 37.109 400164 400191 954615 12 x 0.75
37.110 - 39.109 400165 400192 954616 12 x 0.75
39.110 - 41.109 400166 400193 954617 12 x 0.75
41.110 - 43.109 400167 400194 954618 12 x 0.75
43.110 - 45.000 400168 400195 954620 12 x 0.75
