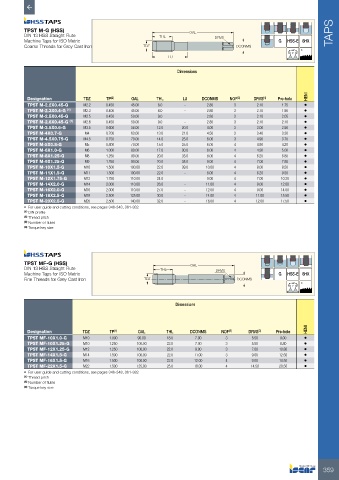

Page 361 - ISCAR(HOLE_MAKING_CATALOG_65)

TPST M-G (HSS) OAL
DIN 13 HSS Straight Flute THL TAPS
Machine Taps for ISO Metric DRVS G HSS-E 6HX
Coarse Threads for Grey Cast Iron TDZ DCONMS
60˚ C
P
LU
Dimensions

Designation TDZ TP (2) OAL THL LU DCONMS NOF (3) DRVS (4) Pre-hole HENI
TPST M-2.2X0.45-G M2.2 0.450 45.00 8.0 - 2.80 3 2.10 1.75 •
TPST M-2.3X0.4-G (1) M2.3 0.400 45.00 8.0 - 2.80 3 2.10 1.90 •
TPST M-2.5X0.45-G M2.5 0.450 50.00 9.0 - 2.80 3 2.10 2.05 •
TPST M-2.6X0.45-G (1) M2.6 0.450 50.00 9.0 - 2.80 3 2.10 2.10 •
TPST M-3.5X0.6-G M3.5 0.600 56.00 12.0 20.0 4.00 3 3.00 2.90 •
TPST M-4X0.7-G M4 0.700 63.00 13.0 21.0 4.50 3 3.40 3.30 •
TPST M-4.5X0.75-G M4.5 0.750 70.00 14.0 25.0 6.00 3 4.90 3.70 •
TPST M-5X0.8-G M5 0.800 70.00 15.0 25.0 6.00 4 4.90 4.20 •
TPST M-6X1.0-G M6 1.000 80.00 17.0 30.0 6.00 4 4.90 5.00 •
TPST M-8X1.25-G M8 1.250 90.00 20.0 35.0 8.00 4 6.20 6.80 •
TPST M-9X1.25-G M9 1.250 90.00 20.0 35.0 9.00 4 7.00 7.80 •
TPST M-10X1.5-G M10 1.500 100.00 22.0 39.0 10.00 4 8.00 8.50 •
TPST M-11X1.5-G M11 1.500 100.00 22.0 - 8.00 4 6.20 9.50 •
TPST M-12X1.75-G M12 1.750 110.00 24.0 - 9.00 4 7.00 10.20 •
TPST M-14X2.0-G M14 2.000 110.00 26.0 - 11.00 4 9.00 12.00 •
TPST M-16X2.0-G M16 2.000 110.00 27.0 - 12.00 4 9.00 14.00 •
TPST M-18X2.5-G M18 2.500 125.00 30.0 - 14.00 4 11.00 15.50 •
TPST M-20X2.5-G M20 2.500 140.00 32.0 - 16.00 4 12.00 17.50 •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) DIN profile
(2) Thread pitch
(3) Number of flutes
(4) Torque key size

TPST MF-G (HSS) OAL
DIN 13 HSS Straight Flute THL DRVS
Machine Taps for ISO Metric G HSS-E 6HX
Fine Threads for Grey Cast Iron TDZ DCONMS
60˚ C
P

Dimensions

HENI
(1)
(2)
Designation TDZ TP OAL THL DCONMS NOF DRVS Pre-hole
(3)
TPST MF-10X1.0-G M10 1.000 90.00 18.0 7.00 3 5.50 9.00 •
TPST MF-10X1.25-G M10 1.250 100.00 22.0 7.00 3 5.50 8.80 •
TPST MF-12X1.25-G M12 1.250 100.00 22.0 9.00 3 7.00 10.80 •
TPST MF-14X1.5-G M14 1.500 100.00 22.0 11.00 3 9.00 12.50 •
TPST MF-16X1.5-G M16 1.500 100.00 22.0 12.00 4 9.00 14.50 •
TPST MF-22X1.5-G M22 1.500 125.00 25.0 18.00 4 14.50 20.50 •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Thread pitch
(2) Number of flutes
(3) Torque key size

359
