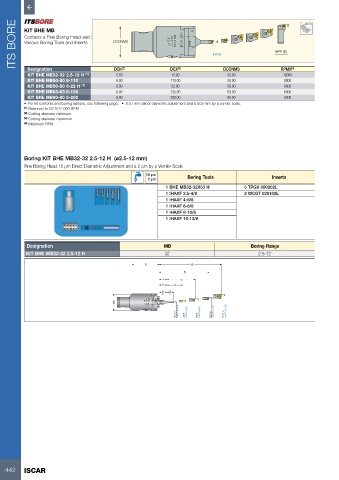

ITS BORE KIT BHE MB DCONMS 0.5 0.01 Non.0.002 LOCK IHAXF KITS

Contains a Fine Boring Head and
Various Boring Tools and Inserts
IHFF (E)

Designation
2.50
KIT BHE MB32-32 2.5-12 H (1) DCN (2) DCX (3) DCONMS RPMX (4)
32.00
10000
12.00
KIT BHE MB50-50 6-110 6.00 110.00 50.00 8000
KIT BHE MB50-50 6-22 H (1) 6.00 22.00 50.00 8000
KIT BHE MB63-63 6-125 6.00 125.00 63.00 6000
KIT BHE MB80-80 6-200 6.00 200.00 80.00 5000
• For kit contents and boring options, see following page. • 0.01 mm direct diametric adjustment and 0.002 mm by a vernier scale.
(1) Balanced to G2.5/12,000 RPM
(2) Cutting diameter minimum
(3) Cutting diameter maximum
(4) Maximum RPM

Boring KIT BHE MB32-32 2.5-12 H (ø2.5-12 mm)
Fine Boring Head 10 μm Direct Diametric Adjustment and a 2 μm by a Vernier Scale
10 µm Boring Tools Inserts
2 µm
1 BHE MB32-32X53 H 5 TPGX 090202L
1 IHAXF 2.5-4/8 2 WCGT 020102L
1 IHAXF 4-6/8
1 IHAXF 6-8/8
1 IHAXF 8-10/8
1 IHAXF 10-12/8

Designation MB Boring Range
KIT BHE MB32-32 2.5-12 H 32 2.5-12

53 36
28
2 21
12 20
16.5 12.5
Ø32 0.5 0.01 Non. 0.002 LOCK
Ø2.5-4 IHAXF 2.5-4/8 Ø4-6 IHAXF 4-6/8 Ø6-8 IHAXF 6-8/8 Ø8-10 IHAXF 8-10/8 Ø10-12 IHAXF 10-12/8
