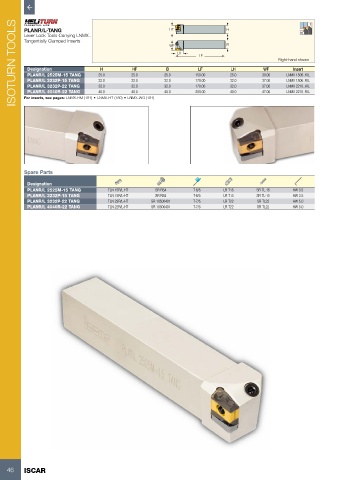

Page 48 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN TOOLS PLANR/L-TANG 25.0 25.0 25.0 HF LH 150.00 H B 25.0 30.00 Right-hand shown

93 º
Lever Lock Tools Carrying LNMX..
Tangentially Clamped Inserts
WF
LF
WF
B
LH
H
HF
Designation
LF
Insert
PLANR/L 2525M-15 TANG
LNMX 1506..R/L
PLANR/L 3232P-15 TANG
32.0
32.0
32.0
LNMX 1506..R/L
37.00
170.00
32.0
PLANR/L 3232P-22 TANG
32.0
170.00
32.0
37.00
LNMX 2210..R/L
32.0
32.0
LNMX 2210..R/L
40.0
47.00
40.0
PLANR/L 4040R-22 TANG
40.0
200.00
40.0
For inserts, see pages: LNMX-HM (181) • LNMX-HT (180) • LNMX-WG (181)

Spare Parts
Designation
PLANR/L 2525M-15 TANG TLN 15R/L-HT SR RS4 T-6/5 LR T15 SR TL-15 HW 3.5
PLANR/L 3232P-15 TANG TLN 15R/L-HT SR RS4 T-6/5 LR T15 SR TL-15 HW 3.5
PLANR/L 3232P-22 TANG TLN 22R/L-HT SR 10500401 T-7/5 LR T22 SR TL22 HW 5.0
PLANR/L 4040R-22 TANG TLN 22R/L-HT SR 10500401 T-7/5 LR T22 SR TL22 HW 5.0
