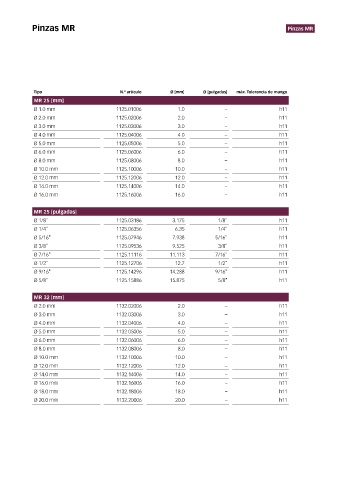

Page 204 - Catalogo_Rego-Fix

Pinzas MR Pinzas MR

Tipo N.º artículo Ø [mm] Ø [pulgadas] máx. Tolerancia de mango
MR 25 [mm]
Ø 1.0 mm 1125.01006 1.0 – h11
Ø 2.0 mm 1125.02006 2.0 – h11
Ø 3.0 mm 1125.03006 3.0 – h11
Ø 4.0 mm 1125.04006 4.0 – h11
Ø 5.0 mm 1125.05006 5.0 – h11
Ø 6.0 mm 1125.06006 6.0 – h11
Ø 8.0 mm 1125.08006 8.0 – h11
Ø 10.0 mm 1125.10006 10.0 – h11
Ø 12.0 mm 1125.12006 12.0 – h11
Ø 14.0 mm 1125.14006 14.0 – h11
Ø 16.0 mm 1125.16006 16.0 – h11

MR 25 [pulgadas]
Ø 1/8" 1125.03186 3.175 1/8" h11
Ø 1/4" 1125.06356 6.35 1/4" h11
Ø 5/16" 1125.07946 7.938 5/16" h11
Ø 3/8" 1125.09536 9.525 3/8" h11
Ø 7/16" 1125.11116 11.113 7/16" h11
Ø 1/2" 1125.12706 12.7 1/2" h11
Ø 9/16" 1125.14296 14.288 9/16" h11
Ø 5/8" 1125.15886 15.875 5/8" h11

MR 32 [mm]
Ø 2.0 mm 1132.02006 2.0 – h11
Ø 3.0 mm 1132.03006 3.0 – h11
Ø 4.0 mm 1132.04006 4.0 – h11
Ø 5.0 mm 1132.05006 5.0 – h11
Ø 6.0 mm 1132.06006 6.0 – h11
Ø 8.0 mm 1132.08006 8.0 – h11
Ø 10.0 mm 1132.10006 10.0 – h11
Ø 12.0 mm 1132.12006 12.0 – h11
Ø 14.0 mm 1132.14006 14.0 – h11
Ø 16.0 mm 1132.16006 16.0 – h11
Ø 18.0 mm 1132.18006 18.0 – h11
Ø 20.0 mm 1132.20006 20.0 – h11
