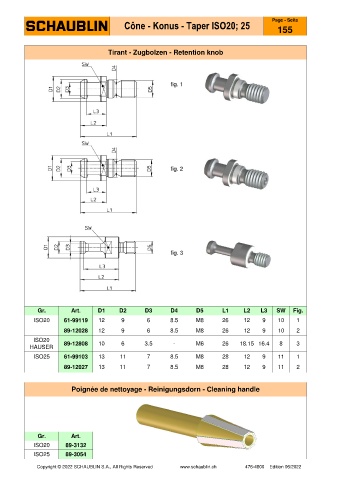

Cône - Konus - Taper ISO20; 25
155
Tirant - Zugbolzen - Retention knob
fig. 1
fig. 2
fig. 3
Gr. Art. D1 D2 D3 D4 D5 L1 L2 L3 SW Fig.
ISO20 61-99119 12 9 6 8.5 M8 26 12 9 10 1
89-12028 12 9 6 8.5 M8 26 12 9 10 2
ISO20
89-12808 10 6 3.5 - M6 26 18.15 16.4 8 3
HAUSER
ISO25 61-99103 13 11 7 8.5 M8 28 12 9 11 1
89-12027 13 11 7 8.5 M8 28 12 9 11 2
Poignée de nettoyage - Reinigungsdorn - Cleaning handle
Gr. Art.
ISO20 89-3132
ISO25 89-3054
