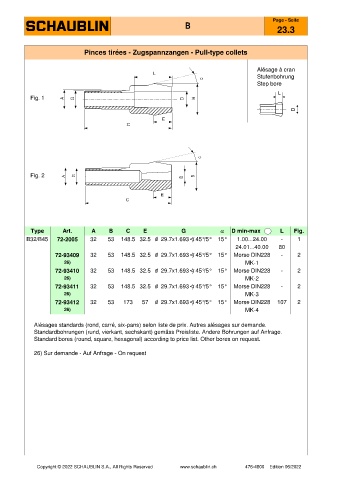

Page 64 - SCHAUBLIN
P. 64

Page - Seite
                                                                  B
                                                                                                  23.3



                               Pinces tirées - Zugspannzangen - Pull-type collets


                                                                                           Alésage à cran
                                                                                           Stufenbohrung
                                                                                           Step bore

            Fig. 1















            Fig. 2










            Type       Art.      A     B     C     E             G            a   D min-max        L    Fig.
          B32/B45    72-2005     32    53   148.5 32.5    29.7x1.693  ) 45°/5°  15°  1.00...24.00   -    1
                                                                                    24.01...40.00  80
                    72-93409     32    53   148.5 32.5    29.7x1.693  ) 45°/5°  15°  Morse DIN228   -    2
                        26)                                                            MK-1
                    72-93410     32    53   148.5 32.5    29.7x1.693  ) 45°/5°  15°  Morse DIN228   -    2
                        26)                                                            MK-2
                    72-93411     32    53   148.5 32.5    29.7x1.693  ) 45°/5°  15°  Morse DIN228   -    2
                        26)                                                            MK-3
                    72-93412     32    53   173    57      29.7x1.693  ) 45°/5°  15°  Morse DIN228  107  2
                        26)                                                            MK-4

             Alésages standards (rond, carré, six-pans) selon liste de prix. Autres alésages sur demande.
             Standardbohrungen (rund, vierkant, sechskant) gemäss Preisliste. Andere Bohrungen auf Anfrage.
             Standard bores (round, square, hexagonal) according to price list. Other bores on request.

             26) Sur demande - Auf Anfrage - On request























              Copyright © 2022 SCHAUBLIN S.A., All Rights Reserved                     www.schaublin.ch                      476-4800    Edition 06/2022
