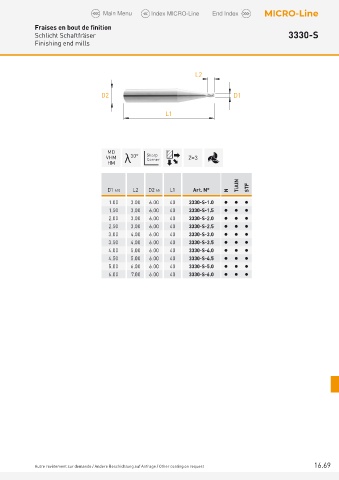

Fraises en bout de finition
Schlicht Schaftfräser 3330-S
Finishing end mills

L2

D2 D1

L1

MD
VHM λ 30° Sharp Z=3
Corner
HM

D1 h10 L2 D2 h5 L1 Art. N° N TiAlN STF
1.00 3.00 6.00 40 3330-S-1.0   
1.50 3.00 6.00 40 3330-S-1.5   
2.00 3.00 6.00 40 3330-S-2.0   
2.50 3.00 6.00 40 3330-S-2.5   
3.00 4.00 6.00 40 3330-S-3.0   
3.50 4.00 6.00 40 3330-S-3.5   
4.00 5.00 6.00 40 3330-S-4.0   
4.50 5.00 6.00 40 3330-S-4.5   
5.00 6.00 6.00 40 3330-S-5.0   
6.00 7.00 6.00 40 3330-S-6.0   

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.69
