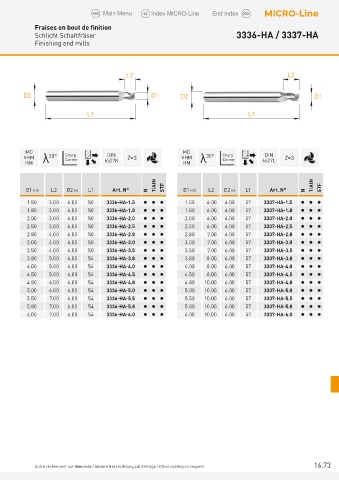

Fraises en bout de finition
Schlicht Schaftfräser 3336-HA / 3337-HA
Finishing end mills

L2 L2

D2 D1 D2 D1

L1 L1

MD MD
DIN
DIN
VHM λ 30° Sharp 6527K Z=3 VHM λ 30° Sharp 6527L Z=3
Corner
Corner
HM HM
D1 h10 L2 D2 h5 L1 Art. N° N TiAlN STF D1 h10 L2 D2 h5 L1 Art. N° N TiAlN STF
1.50 3.00 6.00 50 3336-HA-1.5  1.50 6.00 6.00 57 3337-HA-1.5 
1.80 3.00 6.00 50 3336-HA-1.8  1.80 6.00 6.00 57 3337-HA-1.8 
2.00 3.00 6.00 50 3336-HA-2.0  2.00 6.00 6.00 57 3337-HA-2.0 
2.50 3.00 6.00 50 3336-HA-2.5  2.50 6.00 6.00 57 3337-HA-2.5 
2.80 4.00 6.00 50 3336-HA-2.8  2.80 7.00 6.00 57 3337-HA-2.8 
3.00 4.00 6.00 50 3336-HA-3.0  3.00 7.00 6.00 57 3337-HA-3.0 
3.50 4.00 6.00 50 3336-HA-3.5  3.50 7.00 6.00 57 3337-HA-3.5 
3.80 5.00 6.00 54 3336-HA-3.8  3.80 8.00 6.00 57 3337-HA-3.8 
4.00 5.00 6.00 54 3336-HA-4.0  4.00 8.00 6.00 57 3337-HA-4.0 
4.50 5.00 6.00 54 3336-HA-4.5  4.50 8.00 6.00 57 3337-HA-4.5 
4.80 6.00 6.00 54 3336-HA-4.8  4.80 10.00 6.00 57 3337-HA-4.8 
5.00 6.00 6.00 54 3336-HA-5.0  5.00 10.00 6.00 57 3337-HA-5.0 
5.50 7.00 6.00 54 3336-HA-5.5  5.50 10.00 6.00 57 3337-HA-5.5 
5.80 7.00 6.00 54 3336-HA-5.8  5.80 10.00 6.00 57 3337-HA-5.8 
6.00 7.00 6.00 54 3336-HA-6.0  6.00 10.00 6.00 57 3337-HA-6.0 

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.73
