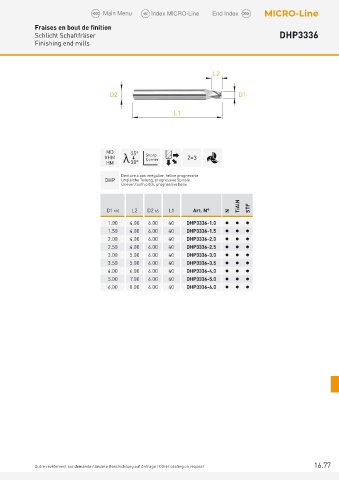

Page 879 - 25-053 APPLITEC catalogue 2025.indb

Main Menu Index MICRO-Line End Index MICRO-Line
Fraises en bout de finition
Schlicht Schaftfräser DHP3336
Finishing end mills

L2

D2 D1

L1

MD 35°
VHM Sharp Z=3
Corner
HM λ 38°
Denture à pas irrégulier, hélice progressive
DHP Ungleiche Teilung, progressive Spirale
Uneven tooth pitch, progressive helix

D1 h10 L2 D2 h5 L1 Art. N° N TiAlN STF
1.00 4.00 6.00 40 DHP3336-1.0   
1.50 4.00 6.00 40 DHP3336-1.5   
2.00 4.00 6.00 40 DHP3336-2.0   
2.50 4.00 6.00 40 DHP3336-2.5   
3.00 5.00 6.00 40 DHP3336-3.0   
3.50 5.00 6.00 40 DHP3336-3.5   
4.00 6.00 6.00 40 DHP3336-4.0   
5.00 7.00 6.00 40 DHP3336-5.0   
6.00 8.00 6.00 40 DHP3336-6.0   

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.77
