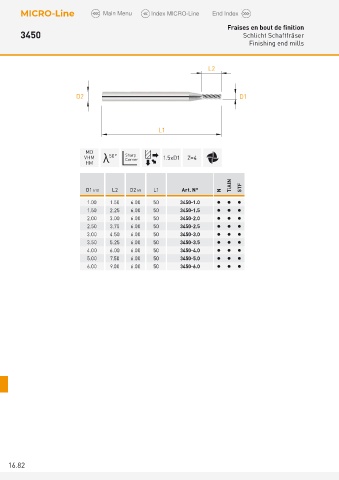

Fraises en bout de finition
3450 Schlicht Schaftfräser
Finishing end mills

L2

D2 D1

L1

MD
VHM λ 50° Sharp 1.5xD1 Z=4
Corner
HM

D1 h10 L2 D2 h5 L1 Art. N° N TiAlN STF
1.00 1.50 6.00 50 3450-1.0   
1.50 2.25 6.00 50 3450-1.5   
2.00 3.00 6.00 50 3450-2.0   
2.50 3.75 6.00 50 3450-2.5   
3.00 4.50 6.00 50 3450-3.0   
3.50 5.25 6.00 50 3450-3.5   
4.00 6.00 6.00 50 3450-4.0   
5.00 7.50 6.00 50 3450-5.0   
6.00 9.00 6.00 50 3450-6.0   
