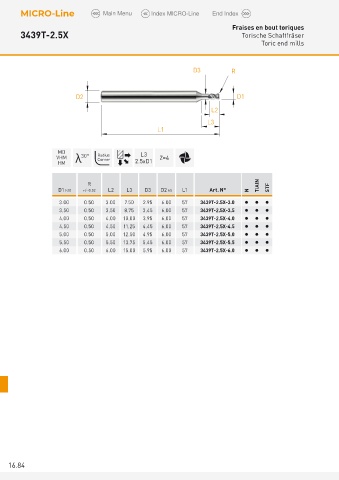

Fraises en bout toriques
3439T-2.5X Torische Schaftfräser
Toric end mills

D3 R

D2 D1
L2
L3
L1

MD L3
VHM λ 30° Radius Z=4
Corner
HM 2.5xD1
R TiAlN
D1 h10 +/- 0.02 L2 L3 D3 D2 h5 L1 Art. N° N STF
3.00 0.50 3.00 7.50 2.95 6.00 57 3439T-2.5X-3.0   
3.50 0.50 3.50 8.75 3.45 6.00 57 3439T-2.5X-3.5   
4.00 0.50 4.00 10.00 3.95 6.00 57 3439T-2.5X-4.0   
4.50 0.50 4.50 11.25 4.45 6.00 57 3439T-2.5X-4.5   
5.00 0.50 5.00 12.50 4.95 6.00 57 3439T-2.5X-5.0   
5.50 0.50 5.50 13.75 5.45 6.00 57 3439T-2.5X-5.5   
6.00 0.50 6.00 15.00 5.95 6.00 57 3439T-2.5X-6.0   
