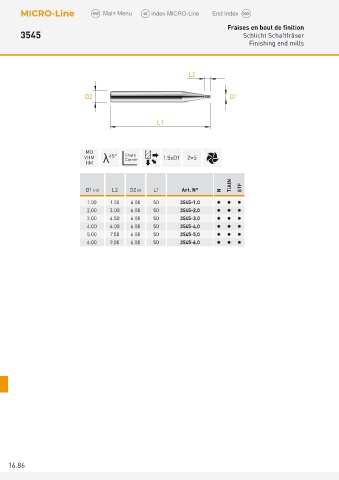

Fraises en bout de finition
3545 Schlicht Schaftfräser
Finishing end mills

L2

D2 D1

L1

MD
VHM λ 45° Sharp 1.5xD1 Z=5
Corner
HM

D1 h10 L2 D2 h5 L1 Art. N° N TiAlN STF
1.00 1.50 6.00 50 3545-1.0   
2.00 3.00 6.00 50 3545-2.0   
3.00 4.50 6.00 50 3545-3.0   
4.00 6.00 6.00 50 3545-4.0   
5.00 7.50 6.00 50 3545-5.0   
6.00 9.00 6.00 50 3545-6.0   
