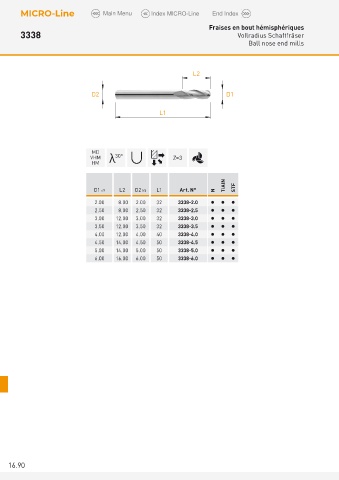

Fraises en bout hémisphériques
3338 Vollradius Schaftfräser
Ball nose end mills

L2

D2 D1

L1

MD
VHM λ 30° Z=3
HM

D1 e9 L2 D2 h5 L1 Art. N° N TiAlN STF
2.00 8.00 2.00 32 3338-2.0   
2.50 8.00 2.50 32 3338-2.5   
3.00 12.00 3.00 32 3338-3.0   
3.50 12.00 3.50 32 3338-3.5   
4.00 12.00 4.00 40 3338-4.0   
4.50 14.00 4.50 50 3338-4.5   
5.00 14.00 5.00 50 3338-5.0   
6.00 16.00 6.00 50 3338-6.0   

16.90
