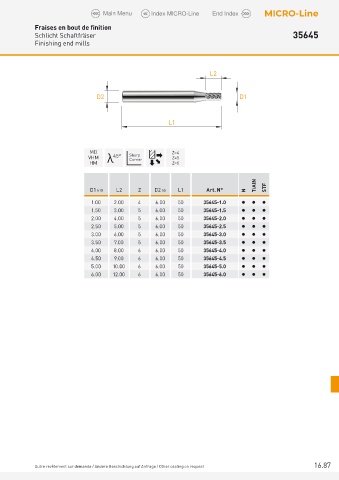

Fraises en bout de finition
Schlicht Schaftfräser 35645
Finishing end mills

L2

D2 D1

L1

MD Z=4
VHM λ 45° Sharp Z=5
Corner
HM Z=6

D1 h10 L2 Z D2 h5 L1 Art. N° N TiAlN STF
1.00 2.00 4 6.00 50 35645-1.0   
1.50 3.00 5 6.00 50 35645-1.5   
2.00 4.00 5 6.00 50 35645-2.0   
2.50 5.00 5 6.00 50 35645-2.5   
3.00 6.00 5 6.00 50 35645-3.0   
3.50 7.00 5 6.00 50 35645-3.5   
4.00 8.00 6 6.00 50 35645-4.0   
4.50 9.00 6 6.00 50 35645-4.5   
5.00 10.00 6 6.00 50 35645-5.0   
6.00 12.00 6 6.00 50 35645-6.0   

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.87
