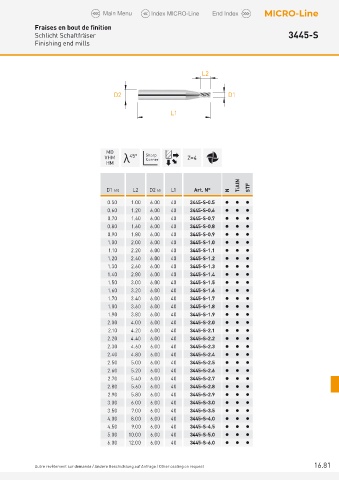

Fraises en bout de finition
Schlicht Schaftfräser 3445-S
Finishing end mills

L2

D2 D1
L1

MD
VHM λ 45° Sharp Z=4
Corner
HM

D1 h10 L2 D2 h5 L1 Art. N° N TiAlN STF
0.50 1.00 6.00 40 3445-S-0.5   
0.60 1.20 6.00 40 3445-S-0.6   
0.70 1.40 6.00 40 3445-S-0.7   
0.80 1.60 6.00 40 3445-S-0.8   
0.90 1.80 6.00 40 3445-S-0.9   
1.00 2.00 6.00 40 3445-S-1.0   
1.10 2.20 6.00 40 3445-S-1.1   
1.20 2.40 6.00 40 3445-S-1.2   
1.30 2.60 6.00 40 3445-S-1.3   
1.40 2.80 6.00 40 3445-S-1.4   
1.50 3.00 6.00 40 3445-S-1.5   
1.60 3.20 6.00 40 3445-S-1.6   
1.70 3.40 6.00 40 3445-S-1.7   
1.80 3.60 6.00 40 3445-S-1.8   
1.90 3.80 6.00 40 3445-S-1.9   
2.00 4.00 6.00 40 3445-S-2.0   
2.10 4.20 6.00 40 3445-S-2.1   
2.20 4.40 6.00 40 3445-S-2.2   
2.30 4.60 6.00 40 3445-S-2.3   
2.40 4.80 6.00 40 3445-S-2.4   
2.50 5.00 6.00 40 3445-S-2.5   
2.60 5.20 6.00 40 3445-S-2.6   
2.70 5.40 6.00 40 3445-S-2.7   
2.80 5.60 6.00 40 3445-S-2.8   
2.90 5.80 6.00 40 3445-S-2.9   
3.00 6.00 6.00 40 3445-S-3.0   
3.50 7.00 6.00 40 3445-S-3.5   
4.00 8.00 6.00 40 3445-S-4.0   
4.50 9.00 6.00 40 3445-S-4.5   
5.00 10.00 6.00 40 3445-S-5.0   
6.00 12.00 6.00 40 3445-S-6.0   

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.81
