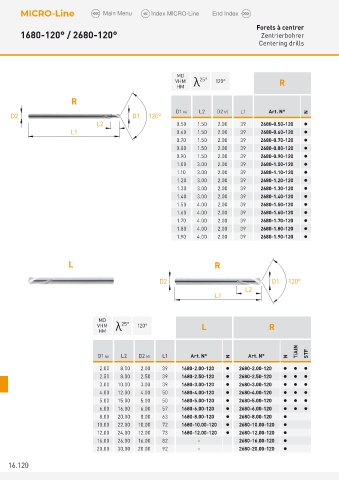

Page 922 - 25-053 APPLITEC catalogue 2025.indb

MICRO-Line Main Menu Index MICRO-Line End Index

Forets à centrer
1680-120° / 2680-120° Zentrierbohrer
Centering drills

MD
VHM λ 25° 120° R
HM
R

D2 D1 120° D1 h6 L2 D2 h5 L1 Art. N° N
L2 0.50 1.50 2.00 39 2680-0.50-120 
L1 0.60 1.50 2.00 39 2680-0.60-120 
0.70 1.50 2.00 39 2680-0.70-120 
0.80 1.50 2.00 39 2680-0.80-120 
0.90 1.50 2.00 39 2680-0.90-120 
1.00 3.00 2.00 39 2680-1.00-120 
1.10 3.00 2.00 39 2680-1.10-120 
1.20 3.00 2.00 39 2680-1.20-120 
1.30 3.00 2.00 39 2680-1.30-120 
1.40 3.00 2.00 39 2680-1.40-120 
1.50 4.00 2.00 39 2680-1.50-120 
1.60 4.00 2.00 39 2680-1.60-120 
1.70 4.00 2.00 39 2680-1.70-120 
1.80 4.00 2.00 39 2680-1.80-120 
1.90 4.00 2.00 39 2680-1.90-120 

L R

D2 D1 120°
L2
L1

MD
VHM λ 25° 120° L R
HM

D1 h6 L2 D2 h5 L1 Art. N° N Art. N° N TiAlN STF
2.00 8.00 2.00 39 1680-2.00-120  2680-2.00-120   
2.50 8.00 2.50 39 1680-2.50-120  2680-2.50-120   
3.00 10.00 3.00 39 1680-3.00-120  2680-3.00-120   
4.00 12.00 4.00 50 1680-4.00-120  2680-4.00-120   
5.00 15.00 5.00 50 1680-5.00-120  2680-5.00-120   
6.00 16.00 6.00 57 1680-6.00-120  2680-6.00-120   
8.00 20.00 8.00 63 1680-8.00-120  2680-8.00-120 
10.00 22.00 10.00 72 1680-10.00-120  2680-10.00-120 
12.00 24.00 12.00 73 1680-12.00-120  2680-12.00-120 
16.00 26.00 16.00 82 - 2680-16.00-120 
20.00 30.00 20.00 92 - 2680-20.00-120 

16.120
