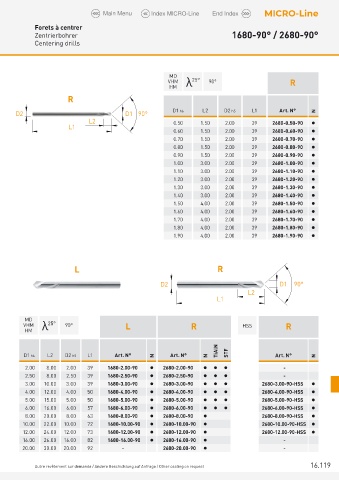

Forets à centrer
Zentrierbohrer 1680-90° / 2680-90°
Centering drills

MD
VHM λ 25° 90° R
HM
R

D2 D1 90° D1 h6 L2 D2 h5 L1 Art. N° N
L2 0.50 1.50 2.00 39 2680-0.50-90
L1 
0.60 1.50 2.00 39 2680-0.60-90 
0.70 1.50 2.00 39 2680-0.70-90 
0.80 1.50 2.00 39 2680-0.80-90 
0.90 1.50 2.00 39 2680-0.90-90 
1.00 3.00 2.00 39 2680-1.00-90 
1.10 3.00 2.00 39 2680-1.10-90 
1.20 3.00 2.00 39 2680-1.20-90 
1.30 3.00 2.00 39 2680-1.30-90 
1.40 3.00 2.00 39 2680-1.40-90 
1.50 4.00 2.00 39 2680-1.50-90 
1.60 4.00 2.00 39 2680-1.60-90 
1.70 4.00 2.00 39 2680-1.70-90 
1.80 4.00 2.00 39 2680-1.80-90 
1.90 4.00 2.00 39 2680-1.90-90 

L R

D2 D1 90°
L2
L1

MD
VHM λ 25° 90° L R HSS R
HM

D1 h6 L2 D2 h5 L1 Art. N° N Art. N° N TiAlN STF Art. N° N
2.00 8.00 2.00 39 1680-2.00-90  2680-2.00-90    -
2.50 8.00 2.50 39 1680-2.50-90  2680-2.50-90    -
3.00 10.00 3.00 39 1680-3.00-90  2680-3.00-90    2680-3.00-90-HSS 
4.00 12.00 4.00 50 1680-4.00-90  2680-4.00-90    2680-4.00-90-HSS 
5.00 15.00 5.00 50 1680-5.00-90  2680-5.00-90    2680-5.00-90-HSS 
6.00 16.00 6.00 57 1680-6.00-90  2680-6.00-90    2680-6.00-90-HSS 
8.00 20.00 8.00 63 1680-8.00-90  2680-8.00-90  2680-8.00-90-HSS 
10.00 22.00 10.00 72 1680-10.00-90  2680-10.00-90  2680-10.00-90-HSS 
12.00 24.00 12.00 73 1680-12.00-90  2680-12.00-90  2680-12.00-90-HSS 
16.00 26.00 16.00 82 1680-16.00-90  2680-16.00-90  -
20.00 30.00 20.00 92 - 2680-20.00-90  -

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.119
