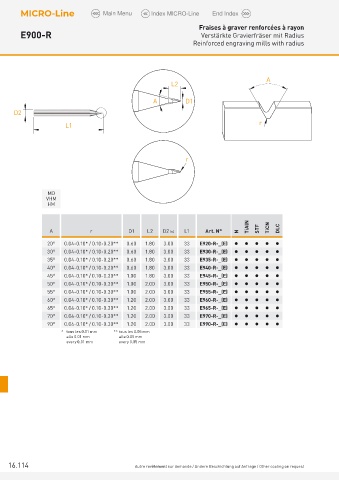

Fraises à graver renforcées à rayon
E900-R Verstärkte Gravierfräser mit Radius
Reinforced engraving mills with radius

A
L2
A D1
D2

L1 r

r

MD
VHM
HM

A r D 1 L 2 D 2 h4 L1 Art. N° N TiAlN STF TiCN DLC
20° 0.04-0.10* / 0.10-0.20** 0.60 1.80 3.00 33 E920-R-_(E)     
30° 0.04-0.10* / 0.10-0.20** 0.60 1.80 3.00 33 E930-R-_(E)     
35° 0.04-0.10* / 0.10-0.20** 0.60 1.80 3.00 33 E935-R-_(E)     
40° 0.04-0.10* / 0.10-0.20** 0.60 1.80 3.00 33 E940-R-_(E)     
45° 0.04-0.10* / 0.10-0.30** 1.00 1.80 3.00 33 E945-R-_(E)     
50° 0.04-0.10* / 0.10-0.30** 1.00 2.00 3.00 33 E950-R-_(E)     
55° 0.04-0.10* / 0.10-0.30** 1.00 2.00 3.00 33 E955-R-_(E)     
60° 0.04-0.10* / 0.10-0.30** 1.20 2.00 3.00 33 E960-R-_(E)     
65° 0.04-0.10* / 0.10-0.30** 1.20 2.00 3.00 33 E965-R-_(E)     
70° 0.04-0.10* / 0.10-0.30** 1.20 2.00 3.00 33 E970-R-_(E)     
90° 0.04-0.10* / 0.10-0.30** 1.20 2.00 3.00 33 E990-R-_(E)     
* tous les 0.01 mm ** tous les 0.05 mm
alle 0.01 mm alle 0.05 mm
every 0.01 mm every 0.05 mm

16.114 Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request
