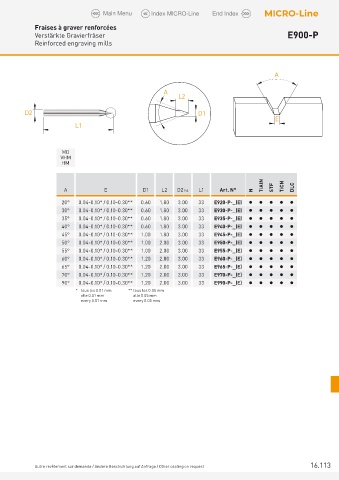

Fraises à graver renforcées
Verstärkte Gravierfräser E900-P
Reinforced engraving mills

A

A
L2
D2 D1
E
L1

MD
VHM
HM

A E D 1 L 2 D 2 h4 L1 Art. N° N TiAlN STF TiCN DLC
20° 0.04-0.10* / 0.10-0.30** 0.60 1.80 3.00 33 E920-P-_(E)     
30° 0.04-0.10* / 0.10-0.30** 0.60 1.80 3.00 33 E930-P-_(E)     
35° 0.04-0.10* / 0.10-0.30** 0.60 1.80 3.00 33 E935-P-_(E)     
40° 0.04-0.10* / 0.10-0.30** 0.60 1.80 3.00 33 E940-P-_(E)     
45° 0.04-0.10* / 0.10-0.30** 1.00 1.80 3.00 33 E945-P-_(E)     
50° 0.04-0.10* / 0.10-0.30** 1.00 2.00 3.00 33 E950-P-_(E)     
55° 0.04-0.10* / 0.10-0.30** 1.00 2.00 3.00 33 E955-P-_(E)     
60° 0.04-0.10* / 0.10-0.30** 1.20 2.00 3.00 33 E960-P-_(E)     
65° 0.04-0.10* / 0.10-0.30** 1.20 2.00 3.00 33 E965-P-_(E)     
70° 0.04-0.10* / 0.10-0.30** 1.20 2.00 3.00 33 E970-P-_(E)     
90° 0.04-0.10* / 0.10-0.30** 1.20 2.00 3.00 33 E990-P-_(E)     
* tous les 0.01 mm ** tous les 0.05 mm
alle 0.01 mm alle 0.05 mm
every 0.01 mm every 0.05 mm

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.113
