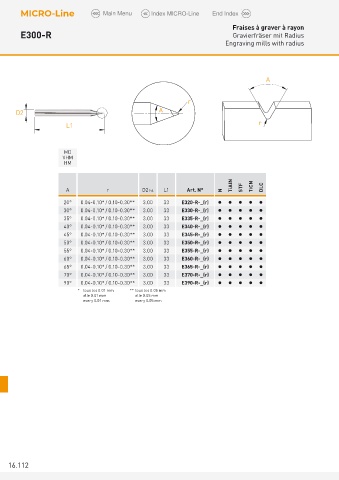

Fraises à graver à rayon
E300-R Gravierfräser mit Radius
Engraving mills with radius

A

r
D2 A

L1 r

MD
VHM
HM

A r D 2 h4 L1 Art. N° N TiAlN STF TiCN DLC
20° 0.04-0.10* / 0.10-0.30** 3.00 33 E320-R-_(r)     
30° 0.04-0.10* / 0.10-0.30** 3.00 33 E330-R-_(r)     
35° 0.04-0.10* / 0.10-0.30** 3.00 33 E335-R-_(r)     
40° 0.04-0.10* / 0.10-0.30** 3.00 33 E340-R-_(r)     
45° 0.04-0.10* / 0.10-0.30** 3.00 33 E345-R-_(r)     
50° 0.04-0.10* / 0.10-0.30** 3.00 33 E350-R-_(r)     
55° 0.04-0.10* / 0.10-0.30** 3.00 33 E355-R-_(r)     
60° 0.04-0.10* / 0.10-0.30** 3.00 33 E360-R-_(r)     
65° 0.04-0.10* / 0.10-0.30** 3.00 33 E365-R-_(r)     
70° 0.04-0.10* / 0.10-0.30** 3.00 33 E370-R-_(r)     
90° 0.04-0.10* / 0.10-0.30** 3.00 33 E390-R-_(r)     
* tous les 0.01 mm ** tous les 0.05 mm
alle 0.01 mm alle 0.05 mm
every 0.01 mm every 0.05 mm
