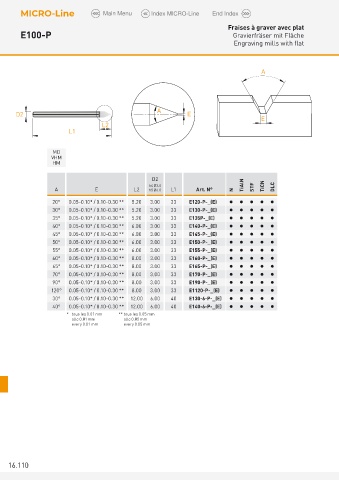

Fraises à graver avec plat
E100-P Gravierfräser mit Fläche
Engraving mills with flat

A

D2 A E E
L2
L1

MD
VHM
HM
D2
h4 Ø3.0 TiAlN TiCN
A E L 2 h5 Ø6.0 L1 Art. N° N STF DLC
20° 0.05-0.10* / 0.10-0.30 ** 5.20 3.00 33 E120-P-_(E)     
30° 0.05-0.10* / 0.10-0.30 ** 5.20 3.00 33 E130-P-_(E)     
35° 0.05-0.10* / 0.10-0.30 ** 5.20 3.00 33 E135P-_(E)     
40° 0.05-0.10* / 0.10-0.30 ** 6.00 3.00 33 E140-P-_(E)     
45° 0.05-0.10* / 0.10-0.30 ** 6.00 3.00 33 E145-P-_(E)     
50° 0.05-0.10* / 0.10-0.30 ** 6.00 3.00 33 E150-P-_(E)     
55° 0.05-0.10* / 0.10-0.30 ** 6.00 3.00 33 E155-P-_(E)     
60° 0.05-0.10* / 0.10-0.30 ** 8.00 3.00 33 E160-P-_(E)     
65° 0.05-0.10* / 0.10-0.30 ** 8.00 3.00 33 E165-P-_(E)     
70° 0.05-0.10* / 0.10-0.30 ** 8.00 3.00 33 E170-P-_(E)     
90° 0.05-0.10* / 0.10-0.30 ** 8.00 3.00 33 E190-P-_(E)     
120° 0.05-0.10* / 0.10-0.30 ** 8.00 3.00 33 E1120-P-_(E)     
30° 0.05-0.10* / 0.10-0.30 ** 12.00 6.00 40 E130-6-P-_(E)     
40° 0.05-0.10* / 0.10-0.30 ** 12.00 6.00 40 E140-6-P-_(E)     
* tous les 0.01 mm ** tous les 0.05 mm
alle 0.01 mm alle 0.05 mm
every 0.01 mm every 0.05 mm

16.110
