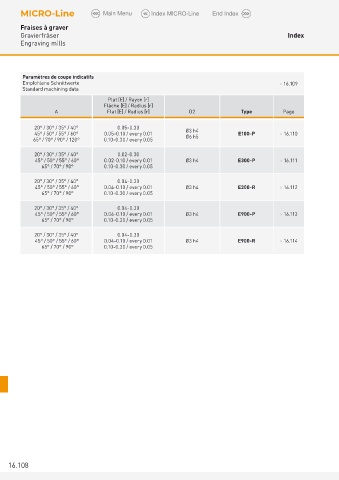

Fraises à graver
Gravierfräser Index
Engraving mills

Paramètres de coupe indicatifs
Empfohlene Schnittwerte > 16.109
Standard machining data
Plat [E] / Rayon [r]
Fläche [E] / Radius [r]
A Flat [E] / Radius [r] D2 Type Page
20° / 30° / 35° / 40° 0.05-0.30 Ø3 h4
45° / 50° / 55° / 60° 0.05-0.10 / every 0.01 E100-P > 16.110
65° / 70° / 90° / 120° 0.10-0.30 / every 0.05 Ø6 h5

20° / 30° / 35° / 40° 0.02-0.30
45° / 50° / 55° / 60° 0.02-0.10 / every 0.01 Ø3 h4 E300-P > 16.111
65° / 70° / 90° 0.10-0.30 / every 0.05
20° / 30° / 35° / 40° 0.04-0.30
45° / 50° / 55° / 60° 0.04-0.10 / every 0.01 Ø3 h4 E300-R > 16.112
65° / 70° / 90° 0.10-0.30 / every 0.05
20° / 30° / 35° / 40° 0.04-0.30
45° / 50° / 55° / 60° 0.04-0.10 / every 0.01 Ø3 h4 E900-P > 16.113
65° / 70° / 90° 0.10-0.30 / every 0.05

20° / 30° / 35° / 40° 0.04-0.30
45° / 50° / 55° / 60° 0.04-0.10 / every 0.01 Ø3 h4 E900-R > 16.114
65° / 70° / 90° 0.10-0.30 / every 0.05

16.108
