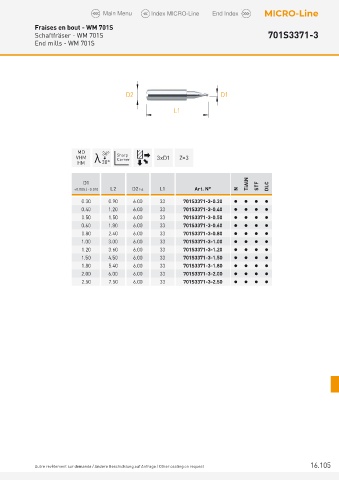

Fraises en bout - WM 701S
Schaftfräser - WM 701S 701S3371-3
End mills - WM 701S

D2 D1

L1

MD 36°
VHM Sharp 3xD1 Z=3
Corner
HM λ 38°
D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF DLC
0.30 0.90 6.00 33 701S3371-3-0.30    
0.40 1.20 6.00 33 701S3371-3-0.40    
0.50 1.50 6.00 33 701S3371-3-0.50    
0.60 1.80 6.00 33 701S3371-3-0.60    
0.80 2.40 6.00 33 701S3371-3-0.80    
1.00 3.00 6.00 33 701S3371-3-1.00    
1.20 3.60 6.00 33 701S3371-3-1.20    
1.50 4.50 6.00 33 701S3371-3-1.50    
1.80 5.40 6.00 33 701S3371-3-1.80    
2.00 6.00 6.00 33 701S3371-3-2.00    
2.50 7.50 6.00 33 701S3371-3-2.50    

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.105
