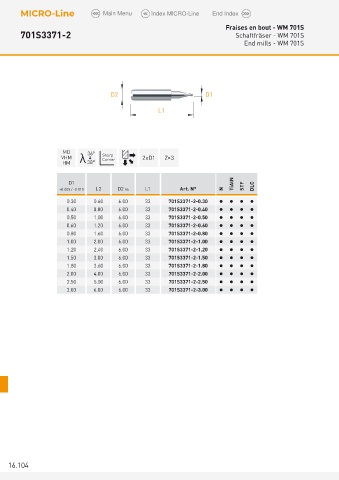

Fraises en bout - WM 701S
701S3371-2 Schaftfräser - WM 701S
End mills - WM 701S

D2 D1

L1

MD 36°
VHM Sharp Z=3 2xD1 Z=3
Corner
HM λ 38°
D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF DLC
0.30 0.60 6.00 33 701S3371-2-0.30    
0.40 0.80 6.00 33 701S3371-2-0.40    
0.50 1.00 6.00 33 701S3371-2-0.50    
0.60 1.20 6.00 33 701S3371-2-0.60    
0.80 1.60 6.00 33 701S3371-2-0.80    
1.00 2.00 6.00 33 701S3371-2-1.00    
1.20 2.40 6.00 33 701S3371-2-1.20    
1.50 3.00 6.00 33 701S3371-2-1.50    
1.80 3.60 6.00 33 701S3371-2-1.80    
2.00 4.00 6.00 33 701S3371-2-2.00    
2.50 5.00 6.00 33 701S3371-2-2.50    
3.00 6.00 6.00 33 701S3371-2-3.00    

16.104
