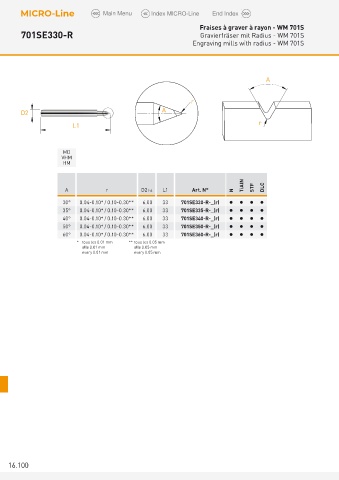

Fraises à graver à rayon - WM 701S
701SE330-R Gravierfräser mit Radius - WM 701S
Engraving mills with radius - WM 701S

A

r
D2 A

L1 r

MD
VHM
HM

A r D 2 h4 L1 Art. N° N TiAlN STF DLC
30° 0.04-0.10* / 0.10-0.30** 6.00 33 701SE330-R-_(r)    
35° 0.04-0.10* / 0.10-0.30** 6.00 33 701SE335-R-_(r)    
40° 0.04-0.10* / 0.10-0.30** 6.00 33 701SE340-R-_(r)    
50° 0.04-0.10* / 0.10-0.30** 6.00 33 701SE350-R-_(r)    
60° 0.04-0.10* / 0.10-0.30** 6.00 33 701SE360-R-_(r)    
* tous les 0.01 mm ** tous les 0.05 mm
alle 0.01 mm alle 0.05 mm
every 0.01 mm every 0.05 mm
