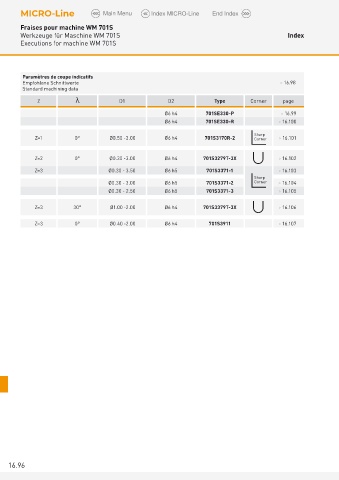

Fraises pour machine WM 701S
Werkzeuge für Maschine WM 701S Index
Executions for machine WM 701S

Paramètres de coupe indicatifs
Empfohlene Schnittwerte > 16.98
Standard machining data
Z λ D1 D2 Type Corner page
Ø6 h4 701SE330-P > 16.99
Ø6 h4 701SE330-R > 16.100

Z=1 0° Ø0.50 -3.00 Ø6 h4 701S3170R-2 Sharp > 16.101
Corner
Z=2 0° Ø0.30 -3.00 Ø6 h4 701S3279T-3X > 16.102

Z=3 Ø0.30 - 3.50 Ø6 h5 701S3371-1 > 16.103
Sharp
Ø0.30 - 3.00 Ø6 h5 701S3371-2 Corner > 16.104
Ø0.30 - 2.50 Ø6 h5 701S3371-3 > 16.105

Z=3 30° Ø1.00 -2.00 Ø6 h4 701S3379T-3X > 16.106

Z=3 0° Ø0.40 -2.00 Ø6 h4 701S3911 > 16.107

16.96
