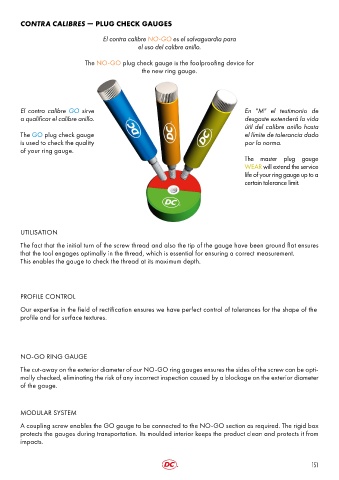

CONTRA CALIBRES › PLUG CHECK GAUGES

El contra calibre NO-GO es el salvaguardia para
el uso del calibre anillo.

The NO-GO plug check gauge is the foolproofing device for
the new ring gauge.

El contra calibre GO sirve En "M" el testimonio de
a qualificar el calibre anillo. desgaste extenderá la vida
útil del calibre anillo hasta
The GO plug check gauge el límite de tolerancia dado
is used to check the quality por la norma.
of your ring gauge.
The master plug gauge
WEAR will extend the service
life of your ring gauge up to a
certain tolerance limit.

UTILISATION

The fact that the initial turn of the screw thread and also the tip of the gauge have been ground flat ensures
that the tool engages optimally in the thread, which is essential for ensuring a correct measurement.
This enables the gauge to check the thread at its maximum depth.

PROFILE CONTROL

Our expertise in the field of rectification ensures we have perfect control of tolerances for the shape of the
profile and for surface textures.

NO-GO RING GAUGE

The cut-away on the exterior diameter of our NO-GO ring gauges ensures the sides of the screw can be opti -
mally checked, eliminating the risk of any incorrect inspection caused by a blockage on the exterior diameter
of the gauge.

MODULAR SYSTEM
A coupling screw enables the GO gauge to be connected to the NO-GO section as required. The rigid box
protects the gauges during transportation. Its moulded interior keeps the product clean and protects it from
impacts.
