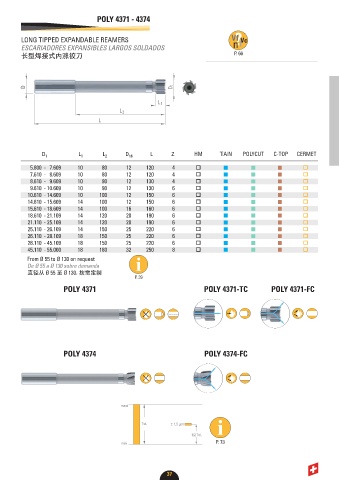

Page 38 - DC_SWISS(Catalogue_TM_ES-EN)
P. 38
POLY 4371 - 4374
LONG TIPPED EXPANDABLE REAMERS
ESCARIADORES EXPANSIBLES LARGOS SOLDADOS
长型焊接式内涨铰刀 P. 66
L D L Z
D L 1 2 h6 HM TiAlN POLYCUT C-TOP CERMET
1
5.800 - 7.609 10 80 12 120 4 o n n n o
7.610 - 8.609 10 80 12 120 4 o n n n o
8.610 - 9.609 10 90 12 130 4 o n n n o
9.610 - 10.609 10 90 12 130 6 o n n n o
10.610 - 14.609 10 100 12 150 6 o n n n o
14.610 - 15.609 14 100 12 150 6 o n n n o
15.610 - 18.609 14 100 16 160 6 o n n n o
18.610 - 21.109 14 120 20 190 6 o n n n o
21.110 - 25.109 14 120 20 190 6 o n n n o
25.110 - 26.109 14 150 25 220 6 o n n n o
26.110 - 28.109 18 150 25 220 6 o n n n o
28.110 - 45.109 18 150 25 220 6 o n n n o
45.110 - 55.000 18 180 32 250 8 o n n n o
From Ø 55 to Ø 130 on request
De Ø 55 a Ø 130 sobre demanda
直径从 Ø 55 至 Ø 130, 按需定制
P. 39
POLY 4371 POLY 4371-TC POLY 4371-FC
POLY 4374 POLY 4374-FC
P. 73
37
