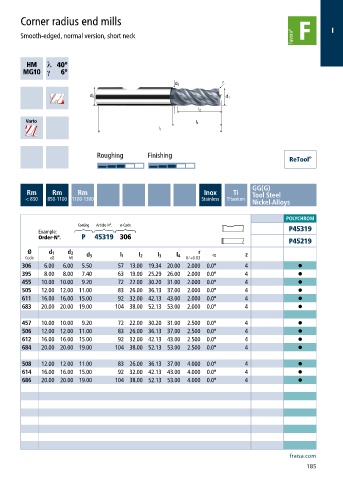

Corner radius end mills
I
Smooth-edged, normal version, short neck

h ƍ
a ƍ

Roughing Finishing

GG(G)
Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example: P45319
Order-N°. P 45319 306
P45219
Ø d 1 d 2 r α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 0/+0.03 z
306 6.00 6.00 5.50 57 13.00 19.34 20.00 2.000 0.0° 4 •
395 8.00 8.00 7.40 63 19.00 25.29 26.00 2.000 0.0° 4 •
455 10.00 10.00 9.20 72 22.00 30.20 31.00 2.000 0.0° 4 •
505 12.00 12.00 11.00 83 26.00 36.13 37.00 2.000 0.0° 4 •
611 16.00 16.00 15.00 92 32.00 42.13 43.00 2.000 0.0° 4 •
683 20.00 20.00 19.00 104 38.00 52.13 53.00 2.000 0.0° 4 •

457 10.00 10.00 9.20 72 22.00 30.20 31.00 2.500 0.0° 4 •
506 12.00 12.00 11.00 83 26.00 36.13 37.00 2.500 0.0° 4 •
612 16.00 16.00 15.00 92 32.00 42.13 43.00 2.500 0.0° 4 •
684 20.00 20.00 19.00 104 38.00 52.13 53.00 2.500 0.0° 4 •
508 12.00 12.00 11.00 83 26.00 36.13 37.00 4.000 0.0° 4 •
614 16.00 16.00 15.00 92 32.00 42.13 43.00 4.000 0.0° 4 •
686 20.00 20.00 19.00 104 38.00 52.13 53.00 4.000 0.0° 4 •

fraisa.com
185
