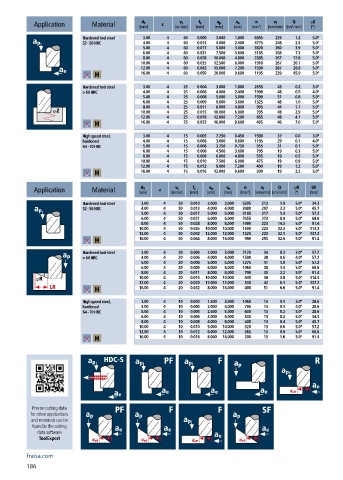

Page 188 - 21-036 APPLITEC catalogue.indb

a p
a e
f z
d 1
v c
v f
Q
n
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min] jZ
3
[°]
Hardened tool steel 3.00 4 60 0.009 3.000 1.800 6365 229 1.2 5.0°
52 - 56 HRC 4.00 4 60 0.013 4.000 2.400 4775 248 2.4 5.0°
5.00 4 60 0.017 5.000 3.000 3820 260 3.9 5.0°
6.00 4 60 0.021 7.500 3.600 3185 268 7.2 5.0°
8.00 4 60 0.028 10.000 4.800 2385 267 12.8 5.0°
10.00 4 60 0.035 12.500 6.000 1910 267 20.1 5.0°
12.00 4 60 0.042 15.000 7.200 1590 267 28.8 5.0°
16.00 4 60 0.050 20.000 9.600 1195 239 45.9 5.0°
Hardened tool steel 3.00 4 25 0.004 3.000 1.800 2655 43 0.2 3.0°
> 60 HRC 4.00 4 25 0.006 4.000 2.400 1990 48 0.5 4.0°
5.00 4 25 0.008 5.000 3.000 1590 51 0.8 5.0°
6.00 4 25 0.009 6.000 3.600 1325 48 1.0 5.0°
8.00 4 25 0.011 8.000 4.800 995 44 1.7 5.0°
10.00 4 25 0.015 10.000 6.000 795 48 2.9 5.0°
12.00 4 25 0.018 12.000 7.200 665 48 4.1 5.0°
16.00 4 25 0.023 16.000 9.600 495 46 7.0 5.0°
High speed steel, 3.00 4 15 0.005 2.250 0.450 1590 32 0.0 3.0°
hardened 4.00 4 15 0.006 3.000 0.600 1195 29 0.1 4.0°
64 - 70 HRC 5.00 4 15 0.008 3.750 0.750 955 31 0.1 5.0°
6.00 4 15 0.006 4.500 3.600 795 19 0.3 5.0°
8.00 4 15 0.008 6.000 4.800 595 19 0.5 5.0°
10.00 4 15 0.010 7.500 6.000 475 19 0.9 5.0°
12.00 4 15 0.012 9.000 7.200 400 19 1.2 5.0°
16.00 4 15 0.016 12.000 9.600 300 19 2.2 5.0°
f z
v c
a p
v f
Q
LR
d 1
a e
n
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] [mm/min] [cm /min] jR [mm]
[°]
3
-1
Hardened tool steel 3.00 4 50 0.010 3.000 3.000 5305 212 1.9 5.0° 34.3
52 - 56 HRC 4.00 4 50 0.013 4.000 4.000 3980 207 3.3 5.0° 45.7
5.00 4 50 0.017 5.000 5.000 3185 217 5.4 5.0° 57.2
6.00 4 50 0.021 6.000 6.000 2655 223 8.0 5.0° 68.6
8.00 4 50 0.028 8.000 8.000 1990 223 14.3 5.0° 91.4
10.00 4 50 0.035 10.000 10.000 1590 223 22.3 5.0° 114.3
12.00 4 50 0.042 12.000 12.000 1325 223 32.1 5.0° 137.2
16.00 4 50 0.064 8.000 16.000 995 255 32.6 5.0° 91.4
Hardened tool steel 3.00 4 20 0.004 3.000 3.000 2120 34 0.3 3.0° 57.2
> 60 HRC 4.00 4 20 0.006 4.000 4.000 1590 38 0.6 4.0° 57.2
5.00 4 20 0.008 5.000 5.000 1275 41 1.0 5.0° 57.2
6.00 4 20 0.009 6.000 6.000 1060 38 1.4 5.0° 68.6
8.00 4 20 0.011 8.000 8.000 795 35 2.2 5.0° 91.4
10.00 4 20 0.015 10.000 10.000 635 38 3.8 5.0° 114.3
12.00 4 20 0.020 12.000 12.000 530 42 6.1 5.0° 137.2
16.00 4 20 0.032 8.000 16.000 400 51 6.6 5.0° 91.4
High speed steel, 3.00 4 10 0.003 1.500 3.000 1060 13 0.1 3.0° 28.6
hardened 4.00 4 10 0.004 2.000 4.000 795 13 0.1 4.0° 28.6
64 - 70 HRC 5.00 4 10 0.005 2.500 5.000 635 13 0.2 5.0° 28.6
6.00 4 10 0.006 3.000 6.000 530 13 0.2 5.0° 34.3
8.00 4 10 0.008 4.000 8.000 400 13 0.4 5.0° 45.7
10.00 4 10 0.010 5.000 10.000 320 13 0.6 5.0° 57.2
12.00 4 10 0.012 6.000 12.000 265 13 0.9 5.0° 68.6
16.00 4 10 0.016 8.000 16.000 200 13 1.6 5.0° 91.4
Precise cutting data
for other applications
and materials can be
found in the cutting
data software
ToolExpert
fraisa.com
186
