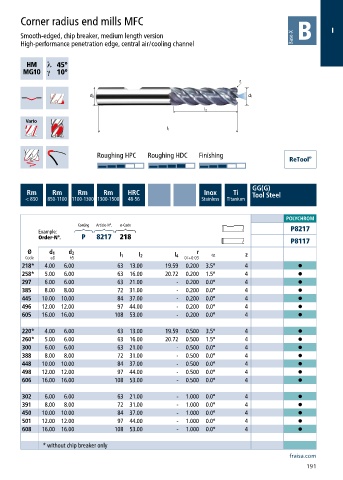

Corner radius end mills MFC
I
Smooth-edged, chip breaker, medium length version
High-performance penetration edge, central air/cooling channel

h ƍ
a ƍ

Roughing HPC Roughing HDC Finishing

GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

POLYCHROM
Coating Article-N°. ø-Code
Example: P8217
Order-N°. P 8217 218
P8117
Ø d 1 d 2 r α
Code e8 h5 l 1 l 2 l 4 0/+0.03 z
218* 4.00 6.00 63 13.00 19.59 0.200 3.5° 4 •
258* 5.00 6.00 63 16.00 20.72 0.200 1.5° 4 •
297 6.00 6.00 63 21.00 - 0.200 0.0° 4 •
385 8.00 8.00 72 31.00 - 0.200 0.0° 4 •
445 10.00 10.00 84 37.00 - 0.200 0.0° 4 •
496 12.00 12.00 97 44.00 - 0.200 0.0° 4 •
605 16.00 16.00 108 53.00 - 0.200 0.0° 4 •

220* 4.00 6.00 63 13.00 19.59 0.500 3.5° 4 •
260* 5.00 6.00 63 16.00 20.72 0.500 1.5° 4 •
300 6.00 6.00 63 21.00 - 0.500 0.0° 4 •
388 8.00 8.00 72 31.00 - 0.500 0.0° 4 •
448 10.00 10.00 84 37.00 - 0.500 0.0° 4 •
498 12.00 12.00 97 44.00 - 0.500 0.0° 4 •
606 16.00 16.00 108 53.00 - 0.500 0.0° 4 •

302 6.00 6.00 63 21.00 - 1.000 0.0° 4 •
391 8.00 8.00 72 31.00 - 1.000 0.0° 4 •
450 10.00 10.00 84 37.00 - 1.000 0.0° 4 •
501 12.00 12.00 97 44.00 - 1.000 0.0° 4 •
608 16.00 16.00 108 53.00 - 1.000 0.0° 4 •

* without chip breaker only
fraisa.com
191
