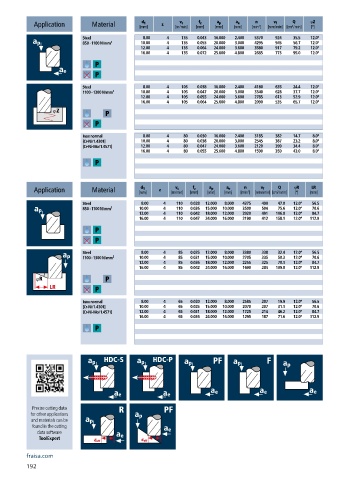

Page 194 - 21-036 APPLITEC catalogue.indb

v f
f z
n
v c
d 1
a p
Q
a e
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min] jZ
3
[°]
Steel 8.00 4 135 0.043 16.000 2.400 5370 924 35.5 12.0°
850 - 1100 N/mm² 10.00 4 135 0.055 20.000 3.000 4295 945 56.7 12.0°
12.00 4 135 0.064 24.000 3.600 3580 917 79.2 12.0°
16.00 4 135 0.072 25.600 4.800 2685 773 95.0 12.0°
Steel 8.00 4 105 0.038 16.000 2.400 4180 635 24.4 12.0°
1100 - 1300 N/mm² 10.00 4 105 0.047 20.000 3.000 3340 628 37.7 12.0°
12.00 4 105 0.055 24.000 3.600 2785 613 52.9 12.0°
16.00 4 105 0.064 25.600 4.800 2090 535 65.7 12.0°
Inox normal 8.00 4 80 0.030 16.000 2.400 3185 382 14.7 8.0°
[Cr-Ni/1.4301] 10.00 4 80 0.038 20.000 3.000 2545 387 23.2 8.0°
[Cr-Ni-Mo/1.4571] 12.00 4 80 0.047 24.000 3.600 2120 399 34.4 8.0°
16.00 4 80 0.055 25.600 4.800 1590 350 43.0 8.0°

d 1
a e
a p
v c
f z
v f
Q
n
LR
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] [mm/min] [cm /min] jR [mm]
3
[°]
-1
Steel 8.00 4 110 0.028 12.000 8.000 4375 490 47.0 12.0° 56.5
850 - 1100 N/mm² 10.00 4 110 0.036 15.000 10.000 3500 504 75.6 12.0° 70.6
12.00 4 110 0.042 18.000 12.000 2920 491 106.0 12.0° 84.7
16.00 4 110 0.047 24.000 16.000 2190 412 158.1 12.0° 112.9
Steel 8.00 4 85 0.025 12.000 8.000 3380 338 32.4 12.0° 56.5
1100 - 1300 N/mm² 10.00 4 85 0.031 15.000 10.000 2705 335 50.3 12.0° 70.6
12.00 4 85 0.036 18.000 12.000 2255 325 70.1 12.0° 84.7
16.00 4 85 0.042 24.000 16.000 1690 284 109.0 12.0° 112.9
Inox normal 8.00 4 65 0.020 12.000 8.000 2585 207 19.9 12.0° 56.5
[Cr-Ni/1.4301] 10.00 4 65 0.025 15.000 10.000 2070 207 31.1 12.0° 70.6
[Cr-Ni-Mo/1.4571] 12.00 4 65 0.031 18.000 12.000 1725 214 46.2 12.0° 84.7
16.00 4 65 0.036 24.000 16.000 1295 187 71.6 12.0° 112.9

Precise cutting data
for other applications
and materials can be
found in the cutting
data software
ToolExpert

fraisa.com
192
