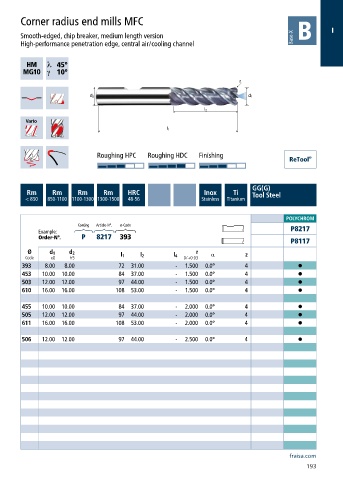

Page 195 - 21-036 APPLITEC catalogue.indb
P. 195
Corner radius end mills MFC
I
Smooth-edged, chip breaker, medium length version
High-performance penetration edge, central air/cooling channel
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P8217
Order-N°. P 8217 393
P8117
Ø d 1 d 2 r α
Code e8 h5 l 1 l 2 l 4 0/+0.03 z
393 8.00 8.00 72 31.00 - 1.500 0.0° 4 •
453 10.00 10.00 84 37.00 - 1.500 0.0° 4 •
503 12.00 12.00 97 44.00 - 1.500 0.0° 4 •
610 16.00 16.00 108 53.00 - 1.500 0.0° 4 •
455 10.00 10.00 84 37.00 - 2.000 0.0° 4 •
505 12.00 12.00 97 44.00 - 2.000 0.0° 4 •
611 16.00 16.00 108 53.00 - 2.000 0.0° 4 •
506 12.00 12.00 97 44.00 - 2.500 0.0° 4 •
fraisa.com
193
