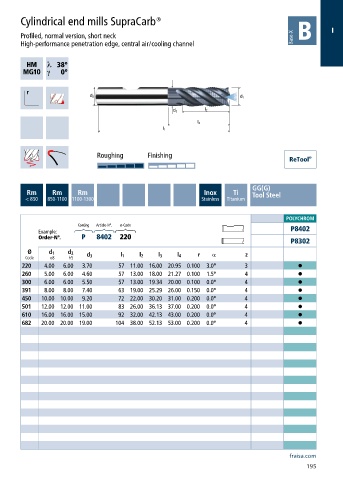

Cylindrical end mills SupraCarb®
I
Profiled, normal version, short neck
High-performance penetration edge, central air/cooling channel

h ƍ
a ƍ

Roughing Finishing

GG(G)
Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 Stainless Titanium

POLYCHROM
Coating Article-N°. ø-Code
Example: P8402
Order-N°. P 8402 220
P8302
Ø d 1 d 2 α
Code e8 h5 d 3 l 1 l 2 l 3 l 4 r z
220 4.00 6.00 3.70 57 11.00 16.00 20.95 0.100 3.0° 3 •
260 5.00 6.00 4.60 57 13.00 18.00 21.27 0.100 1.5° 4 •
300 6.00 6.00 5.50 57 13.00 19.34 20.00 0.100 0.0° 4 •
391 8.00 8.00 7.40 63 19.00 25.29 26.00 0.150 0.0° 4 •
450 10.00 10.00 9.20 72 22.00 30.20 31.00 0.200 0.0° 4 •
501 12.00 12.00 11.00 83 26.00 36.13 37.00 0.200 0.0° 4 •
610 16.00 16.00 15.00 92 32.00 42.13 43.00 0.200 0.0° 4 •
682 20.00 20.00 19.00 104 38.00 52.13 53.00 0.200 0.0° 4 •
