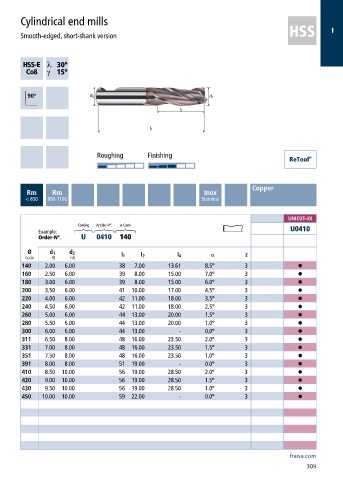

Cylindrical end mills
I
Smooth-edged, short-shank version

h ƍ
a ƍ

Roughing Finishing

Copper
Rm Rm Inox
< 850 850-1100 Stainless

UNICUT-4X
Coating Article-N°. ø-Code
Example: U0410
Order-N°. U 0410 140
Ø d 1 d 2 α
Code f8 h6 l 1 l 2 l 4 z
140 2.00 6.00 38 7.00 13.61 8.5° 3 •
160 2.50 6.00 39 8.00 15.00 7.0° 3 •
180 3.00 6.00 39 8.00 15.00 6.0° 3 •
200 3.50 6.00 41 10.00 17.00 4.5° 3 •
220 4.00 6.00 42 11.00 18.00 3.5° 3 •
240 4.50 6.00 42 11.00 18.00 2.5° 3 •
260 5.00 6.00 44 13.00 20.00 1.5° 3 •
280 5.50 6.00 44 13.00 20.00 1.0° 3 •
300 6.00 6.00 44 13.00 - 0.0° 3 •
311 6.50 8.00 48 16.00 23.50 2.0° 3 •
331 7.00 8.00 48 16.00 23.50 1.5° 3 •
351 7.50 8.00 48 16.00 23.50 1.0° 3 •
391 8.00 8.00 51 19.00 - 0.0° 3 •
410 8.50 10.00 56 19.00 28.50 2.0° 3 •
420 9.00 10.00 56 19.00 28.50 1.5° 3 •
430 9.50 10.00 56 19.00 28.50 1.0° 3 •
450 10.00 10.00 59 22.00 - 0.0° 3 •
