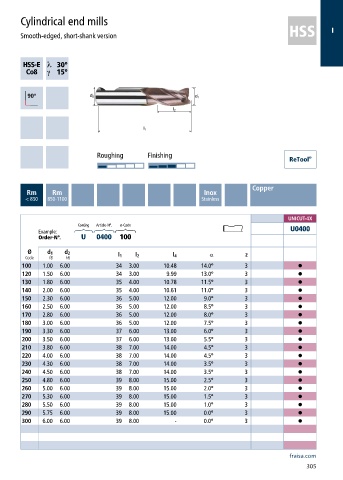

Cylindrical end mills
I
Smooth-edged, short-shank version

h ƍ
a ƍ

Roughing Finishing

Copper
Rm Rm Inox
< 850 850-1100 Stainless

UNICUT-4X
Coating Article-N°. ø-Code
Example: U0400
Order-N°. U 0400 100
Ø d 1 d 2 α
Code f8 h6 l 1 l 2 l 4 z
100 1.00 6.00 34 3.00 10.48 14.0° 3 •
120 1.50 6.00 34 3.00 9.99 13.0° 3 •
130 1.80 6.00 35 4.00 10.78 11.5° 3 •
140 2.00 6.00 35 4.00 10.61 11.0° 3 •
150 2.30 6.00 36 5.00 12.00 9.0° 3 •
160 2.50 6.00 36 5.00 12.00 8.5° 3 •
170 2.80 6.00 36 5.00 12.00 8.0° 3 •
180 3.00 6.00 36 5.00 12.00 7.5° 3 •
190 3.30 6.00 37 6.00 13.00 6.0° 3 •
200 3.50 6.00 37 6.00 13.00 5.5° 3 •
210 3.80 6.00 38 7.00 14.00 4.5° 3 •
220 4.00 6.00 38 7.00 14.00 4.5° 3 •
230 4.30 6.00 38 7.00 14.00 3.5° 3 •
240 4.50 6.00 38 7.00 14.00 3.5° 3 •
250 4.80 6.00 39 8.00 15.00 2.5° 3 •
260 5.00 6.00 39 8.00 15.00 2.0° 3 •
270 5.30 6.00 39 8.00 15.00 1.5° 3 •
280 5.50 6.00 39 8.00 15.00 1.0° 3 •
290 5.75 6.00 39 8.00 15.00 0.0° 3 •
300 6.00 6.00 39 8.00 - 0.0° 3 •
