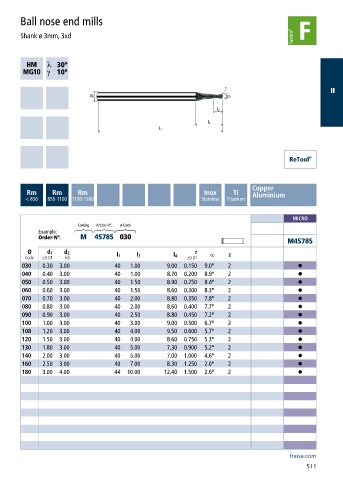

Ball nose end mills

Shank ø 3mm, 3xd

h ƍ
a ƍ

II

Copper
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium

MICRO
Coating Article-N°. ø-Code
Example:
Order-N°. M 45785 030
M45785
Ø d 1 d 2 r α
Code ±0.01 h6 l 1 l 2 l 4 ±0.01 z
030 0.30 3.00 40 1.00 9.00 0.150 9.0° 2 •
040 0.40 3.00 40 1.00 8.70 0.200 8.9° 2 •
050 0.50 3.00 40 1.50 8.90 0.250 8.4° 2 •
060 0.60 3.00 40 1.50 8.60 0.300 8.3° 2 •
070 0.70 3.00 40 2.00 8.80 0.350 7.8° 2 •
080 0.80 3.00 40 2.00 8.60 0.400 7.7° 2 •
090 0.90 3.00 40 2.50 8.80 0.450 7.2° 2 •
100 1.00 3.00 40 3.00 9.00 0.500 6.7° 2 •
108 1.20 3.00 40 4.00 9.50 0.600 5.7° 2 •
120 1.50 3.00 40 4.00 8.60 0.750 5.3° 2 •
130 1.80 3.00 40 5.00 7.30 0.900 5.2° 2 •
140 2.00 3.00 40 5.00 7.00 1.000 4.6° 2 •
160 2.50 3.00 40 7.00 8.30 1.250 2.0° 2 •
180 3.00 4.00 44 10.00 12.40 1.500 2.6° 2 •

fraisa.com
