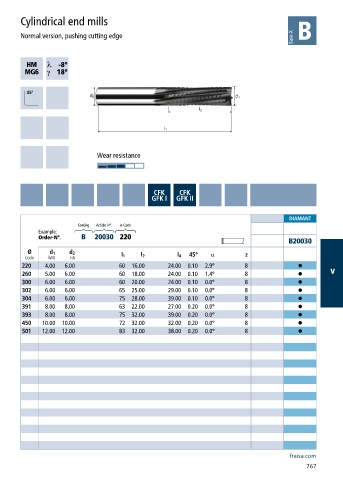

Cylindrical end mills

Normal version, pushing cutting edge

h ƍ
a ƍ

Wear resistance

CFK CFK
GFK I GFK II

DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 20030 220
B20030
Ø d 1 d 2 α
Code h10 h6 l 1 l 2 l 4 45° z
220 4.00 6.00 60 16.00 24.00 0.10 2.9° 8 •
260 5.00 6.00 60 18.00 24.00 0.10 1.4° 8 • V
300 6.00 6.00 60 20.00 24.00 0.10 0.0° 8 •
302 6.00 6.00 65 25.00 29.00 0.10 0.0° 8 •
304 6.00 6.00 75 28.00 39.00 0.10 0.0° 8 •
391 8.00 8.00 63 22.00 27.00 0.20 0.0° 8 •
393 8.00 8.00 75 32.00 39.00 0.20 0.0° 8 •
450 10.00 10.00 72 32.00 32.00 0.20 0.0° 8 •
501 12.00 12.00 83 32.00 38.00 0.20 0.0° 8 •

fraisa.com
767
