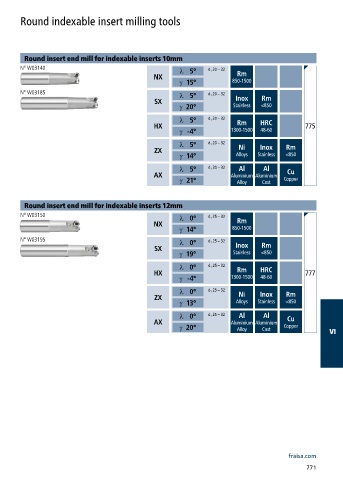

Page 773 - 21-036 APPLITEC catalogue.indb

Round indexable insert milling tools

Round insert end mill for indexable inserts 10mm
N° W03140 l 5° d 1 20 – 32
NX Rm
g 15° 850-1500
N° W03185 l 5° d 1 20 – 32
SX Inox Rm
g 20° Stainless <850
l 5° d 1 20 – 32
HX Rm HRC 775
g -4° 1300-1500 48-60
l 5° d 1 20 – 32
ZX Ni Inox Rm
g 14° Alloys Stainless <850
l 5° d 1 20 – 32 Al Al
AX Aluminium Aluminium Cu
g 21° Alloy Cast Copper

Round insert end mill for indexable inserts 12mm
N° W03150 l 0° d 1 25 – 32
NX Rm
g 14° 850-1500
N° W03195 l 0° d 1 25 – 32
SX Inox Rm
g 19° Stainless <850
l 0° d 1 25 – 32
HX Rm HRC 777
g -4° 1300-1500 48-60
l 0° d 1 25 – 32
ZX Ni Inox Rm
g 13° Alloys Stainless <850
l 0° d 1 25 – 32 Al Al
AX Aluminium Aluminium Cu
g 20° Alloy Cast Copper
VI
