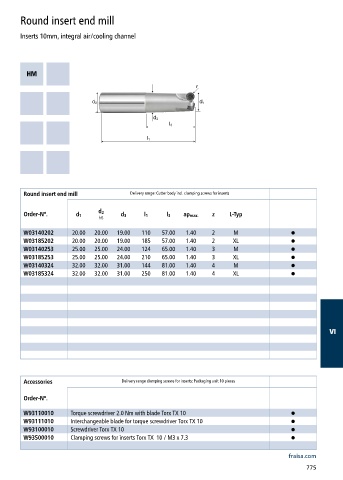

Round insert end mill

Inserts 10mm, integral air/cooling channel

Round insert end mill Delivery range: Cutter body incl. clamping screws for inserts

Order-N°. d 1 d 2 d 3 l 1 l 3 ap max. z L-Typ
h6

W03140202 20.00 20.00 19.00 110 57.00 1.40 2 M •
W03185202 20.00 20.00 19.00 185 57.00 1.40 2 XL •
W03140253 25.00 25.00 24.00 124 65.00 1.40 3 M •
W03185253 25.00 25.00 24.00 210 65.00 1.40 3 XL •
W03140324 32.00 32.00 31.00 144 81.00 1.40 4 M •
W03185324 32.00 32.00 31.00 250 81.00 1.40 4 XL •

VI

Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.

W93110010 Torque screwdriver 2.0 Nm with blade Torx TX 10 •
W93111010 Interchangeable blade for torque screwdriver Torx TX 10 •
W93100010 Screwdriver Torx TX 10 •
W93500010 Clamping screws for inserts Torx TX 10 / M3 x 7.3 •
