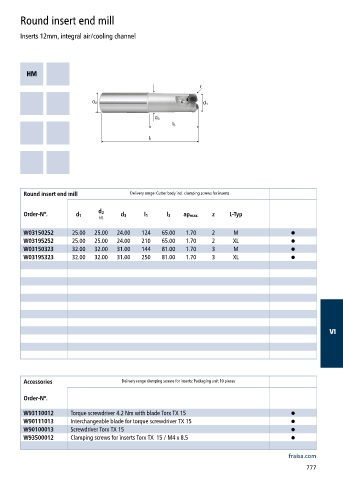

Round insert end mill
Inserts 12mm, integral air/cooling channel
Round insert end mill Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 d 3 l 1 l 3 ap max. z L-Typ
h6
W03150252 25.00 25.00 24.00 124 65.00 1.70 2 M •
W03195252 25.00 25.00 24.00 210 65.00 1.70 2 XL •
W03150323 32.00 32.00 31.00 144 81.00 1.70 3 M •
W03195323 32.00 32.00 31.00 250 81.00 1.70 3 XL •
VI
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W93110012 Torque screwdriver 4.2 Nm with blade Torx TX 15 •
W90111013 Interchangeable blade for torque screwdriver TX 15 •
W90100013 Screwdriver Torx TX 15 •
W93500012 Clamping screws for inserts Torx TX 15 / M4 x 8.5 •
