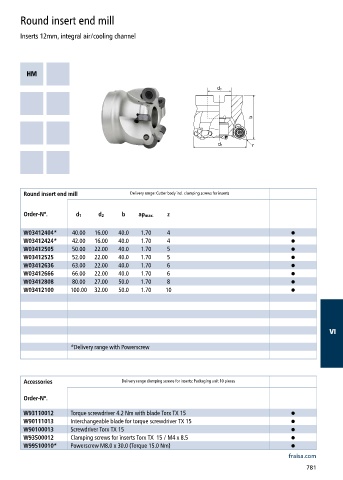

P. 783
Round insert end mill
Inserts 12mm, integral air/cooling channel
Round insert end mill Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 b ap max. z
W03412404* 40.00 16.00 40.0 1.70 4 •
W03412424* 42.00 16.00 40.0 1.70 4 •
W03412505 50.00 22.00 40.0 1.70 5 •
W03412525 52.00 22.00 40.0 1.70 5 •
W03412636 63.00 22.00 40.0 1.70 6 •
W03412666 66.00 22.00 40.0 1.70 6 •
W03412808 80.00 27.00 50.0 1.70 8 •
W03412100 100.00 32.00 50.0 1.70 10 •
VI
*Delivery range with Powerscrew
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W93110012 Torque screwdriver 4.2 Nm with blade Torx TX 15 •
W90111013 Interchangeable blade for torque screwdriver TX 15 •
W90100013 Screwdriver Torx TX 15 •
W93500012 Clamping screws for inserts Torx TX 15 / M4 x 8.5 •
W99510010* Powerscrew M8.0 x 30.0 (Torque 15.0 Nm) •
fraisa.com
781
