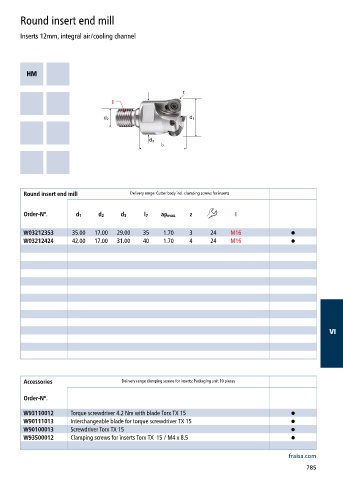

Round insert end mill
Inserts 12mm, integral air/cooling channel
Round insert end mill Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 d 3 l 7 ap max. z I
W03212353 35.00 17.00 29.00 35 1.70 3 24 M16 •
W03212424 42.00 17.00 31.00 40 1.70 4 24 M16 •
VI
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W93110012 Torque screwdriver 4.2 Nm with blade Torx TX 15 •
W90111013 Interchangeable blade for torque screwdriver TX 15 •
W90100013 Screwdriver Torx TX 15 •
W93500012 Clamping screws for inserts Torx TX 15 / M4 x 8.5 •
