P. 785

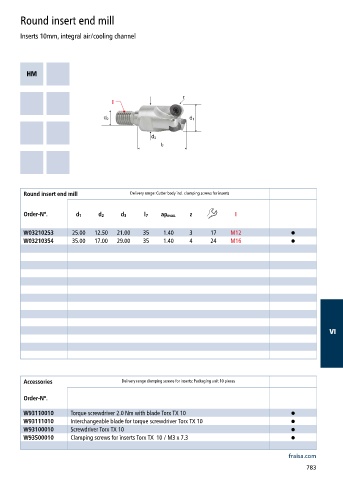

Round insert end mill
Inserts 10mm, integral air/cooling channel
Round insert end mill Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 d 3 l 7 ap max. z I
W03210253 25.00 12.50 21.00 35 1.40 3 17 M12 •
W03210354 35.00 17.00 29.00 35 1.40 4 24 M16 •
VI
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W93110010 Torque screwdriver 2.0 Nm with blade Torx TX 10 •
W93111010 Interchangeable blade for torque screwdriver Torx TX 10 •
W93100010 Screwdriver Torx TX 10 •
W93500010 Clamping screws for inserts Torx TX 10 / M3 x 7.3 •
fraisa.com
783
