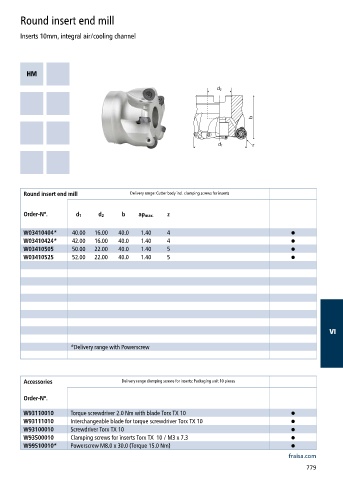

Round insert end mill
Inserts 10mm, integral air/cooling channel
Round insert end mill Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 b ap max. z
W03410404* 40.00 16.00 40.0 1.40 4 •
W03410424* 42.00 16.00 40.0 1.40 4 •
W03410505 50.00 22.00 40.0 1.40 5 •
W03410525 52.00 22.00 40.0 1.40 5 •
VI
*Delivery range with Powerscrew
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W93110010 Torque screwdriver 2.0 Nm with blade Torx TX 10 •
W93111010 Interchangeable blade for torque screwdriver Torx TX 10 •
W93100010 Screwdriver Torx TX 10 •
W93500010 Clamping screws for inserts Torx TX 10 / M3 x 7.3 •
W99510010* Powerscrew M8.0 x 30.0 (Torque 15.0 Nm) •
